深入理解AQS

发表于 分类于

所谓AQS，指的是AbstractQueuedSynchronizer，它提供了一种实现阻塞锁和一系列依赖FIFO等待队列的同步器的框架，ReentrantLock、Semaphore、CountDownLatch、CyclicBarrier等并发类均是基于AQS来实现的，具体用法是通过继承AQS实现其模板方法，然后将子类作为同步组件的内部类。

基本原理

AQS 核心思想：如果被请求的共享资源空闲，则将当前请求资源的线程设置为有效的工作线程，并且将共享资源设置为锁定状态。如果被请求的共享资源被占用，那么就需要一套线程阻塞等待以及被唤醒时锁分配的机制，这个机制 AQS 是用 CLH 队列锁实现的，即将暂时获取不到锁的线程加入到队列中。

CLH，是 Craig、Landin 和 Hagersten 三位作者的缩写，CLH是一种基于链表的高性能、公平的自旋锁。申请加锁的线程通过前驱节点的变量进行自旋。在前置节点解锁后，当前节点会结束自旋，并进行加锁。具体内容可以查看《Building FIFO and Priority-Queuing Spin Locks from Atomic Swap》论文。AQS 是将每条请求共享资源的线程封装成一个 CLH 锁队列的一个结点（Node）来实现锁的分配。

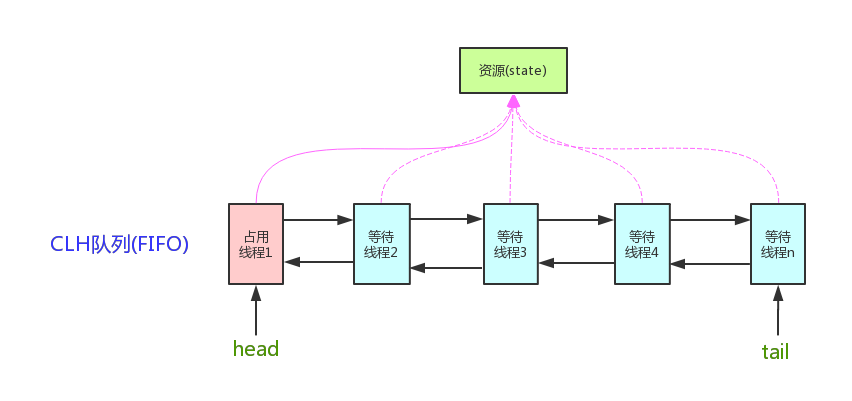

AQS维护了一个volatile语义的共享资源变量state和一个FIFO线程等待队列。

资源共享方式

不同的自定义同步器争用共享资源的方式也不同。自定义同步器在实现时只需要实现共享资源 state 的获取与释放方式即可，至于具体线程等待队列的维护（如获取资源失败入队/唤醒出队等），AQS 已经在上层已经帮我们实现好了。

Exclusive（独占）

只有一个线程能执行，如 ReentrantLock。又可分为公平锁和非公平锁,ReentrantLock 同时支持两种锁,下面以ReentrantLock 对这两种锁的定义做介绍：

  • 公平锁：按照线程在队列中的排队顺序，先到者先拿到锁
  • 非公平锁：当线程要获取锁时，先通过两次 CAS 操作去抢锁，如果没抢到，当前线程再加入到队列中等待唤醒。

Share（共享）

多个线程可同时执行，如 Semaphore/CountDownLatch。Semaphore、CountDownLatCh、 CyclicBarrier、ReadWriteLock。ReentrantReadWriteLock可以看成是组合式，因为 ReentrantReadWriteLock允许多个线程同时对某一资源进行读。

不同的自定义同步器争用共享资源的方式也不同。自定义同步器在实现时只需要实现共享资源 state 的获取与释放方式即可，至于具体线程等待队列的维护（如获取资源失败入队/唤醒出队等），AQS 已经在上层已经帮我们实现好了。

模板方法

AQS的设计是基于模板方法模式的，如果需要自定义同步器一般的方式是这样（模板方法模式很经典的一个应用）：

  1. 使用者继承 AbstractQueuedSynchronizer 并重写指定的方法。（这些重写方法很简单，无非是对于共享资源 state 的获取和释放）
  2. 将 AQS 组合在自定义同步组件的实现中，并调用其模板方法，而这些模板方法会调用使用者重写的方法。

自定义同步器时需要重写下面几个 AQS 提供的模板方法：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
// 独占方式。尝试获取资源，成功则返回true，失败则返回false
protected boolean tryAcquire(int arg) {
    throw new UnsupportedOperationException();
}
// 独占方式。尝试释放资源，成功则返回true，失败则返回false
protected boolean tryRelease(int arg) {
    throw new UnsupportedOperationException();
}
// 共享方式。尝试获取资源。负数表示失败；0表示成功，但没有剩余可用资源；正数表示成功，且有剩余资源。
protected int tryAcquireShared(int arg) {
    throw new UnsupportedOperationException();
}
// 共享方式。尝试释放资源，成功则返回true，失败则返回false
protected boolean tryReleaseShared(int arg) {
    throw new UnsupportedOperationException();
}
// 该线程是否正在独占资源。只有用到condition才需要去实现它
protected boolean isHeldExclusively() {
    throw new UnsupportedOperationException();
}

默认情况下，每个方法都抛出 UnsupportedOperationException。 这些方法的实现必须是内部线程安全的，并且通常应该简短而不是阻塞。AQS 类中的其他方法都是 final ，所以无法被其他类使用，只有这几个方法可以被其他类使用。

CLH队列

Node主要包含thread + waitStatus + pre + next 四个属性。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
static final class Node {
    // 表明节点在共享模式下等待的标记
    static final Node SHARED = new Node();
    // 表明节点在独占模式下等待的标记
    static final Node EXCLUSIVE = null;

    // 下面这四个常量都是给waitStatus用的
    // 表示 此线程取消了争抢这个锁
    static final int CANCELLED =  1;
    // 表示 后继节点对应的线程需要被唤醒
    static final int SIGNAL    = -1;
    // 表示 线程正在等待触发条件
    static final int CONDITION = -2;
    // 表示 下一个acquireShared应无条件传播
    static final int PROPAGATE = -3;

    /**
     * Status field, taking on only the values:
     *   SIGNAL:     The successor of this node is (or will soon be)
     *               blocked (via park), so the current node must
     *               unpark its successor when it releases or
     *               cancels. To avoid races, acquire methods must
     *               first indicate they need a signal,
     *               then retry the atomic acquire, and then,
     *               on failure, block.
     *   CANCELLED:  This node is cancelled due to timeout or interrupt.
     *               Nodes never leave this state. In particular,
     *               a thread with cancelled node never again blocks.
     *   CONDITION:  This node is currently on a condition queue.
     *               It will not be used as a sync queue node
     *               until transferred, at which time the status
     *               will be set to 0. (Use of this value here has
     *               nothing to do with the other uses of the
     *               field, but simplifies mechanics.)
     *   PROPAGATE:  A releaseShared should be propagated to other
     *               nodes. This is set (for head node only) in
     *               doReleaseShared to ensure propagation
     *               continues, even if other operations have
     *               since intervened.
     *   0:          None of the above
     *
     * The values are arranged numerically to simplify use.
     * Non-negative values mean that a node doesn't need to
     * signal. So, most code doesn't need to check for particular
     * values, just for sign.
     *
     * The field is initialized to 0 for normal sync nodes, and
     * CONDITION for condition nodes.  It is modified using CAS
     * (or when possible, unconditional volatile writes).
     */
    volatile int waitStatus;

    // 前驱节点
    volatile Node prev;

    // 后继节点
    volatile Node next;

    // 该节点对应的线程
    volatile Thread thread;

    // 连接下一个等待条件触发的节点
    Node nextWaiter;

    // 返回节点是否处于Shared状态下
    final boolean isShared() {
        return nextWaiter == SHARED;
    }

    // 返回前驱节点
    final Node predecessor() throws NullPointerException {
        Node p = prev;
        if (p == null)
            throw new NullPointerException();
        else
            return p;
    }

    Node() {    // Used to establish initial head or SHARED marker
    }

    Node(Thread thread, Node mode) {     // Used by addWaiter
        this.nextWaiter = mode;
        this.thread = thread;
    }

    Node(Thread thread, int waitStatus) { // Used by Condition
        this.waitStatus = waitStatus;
        this.thread = thread;
    }
}

关键成员变量

1
2
3
4
5
6
7
8
// 头节点
private transient volatile Node head;

// 尾节点
private transient volatile Node tail;

// 同步状态 AQS 使用 CAS 对该同步状态进行原子操作实现对其值的修改
private volatile int state;

acquire方法

以独占方式获取资源

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
/**
 * Acquires in exclusive mode, ignoring interrupts.  Implemented
 * by invoking at least once {@link #tryAcquire},
 * returning on success.  Otherwise the thread is queued, possibly
 * repeatedly blocking and unblocking, invoking {@link
 * #tryAcquire} until success.  This method can be used
 * to implement method {@link Lock#lock}.
 *
 * @param arg the acquire argument.  This value is conveyed to
 *        {@link #tryAcquire} but is otherwise uninterpreted and
 *        can represent anything you like.
 */
public final void acquire(int arg) {
    if (!tryAcquire(arg) &&
        acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
        selfInterrupt();
}

acquire()至少执行一次tryAcquire()，若tryAcquire()返回true，则acquire()直接返回，否则进入acquireQueued(addWaiter(Node.EXCLUSIVE), arg)方法。

selfInterrupt()作用：用户线程第一次获取锁失败之后，进入CLH队列，此时用户可能会中断该线程，所以线程从CLH队列被唤醒之后，要先检查一下之前有没有被中断过，如果中断过了，此时再中断线程。

tryAcquire方法

获取指定量的资源，tryAcquire方法是模板方法，默认抛出UnsupportedOperationException异常，需要由子类即自定义同步器来实现。

addWaiter方法

为当前线程以指定模式创建节点，并将其添加到等待队列的尾部

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
/**
 * Creates and enqueues node for current thread and given mode.
 *
 * @param mode Node.EXCLUSIVE for exclusive, Node.SHARED for shared
 * @return the new node
 */
private Node addWaiter(Node mode) {
    Node node = new Node(Thread.currentThread(), mode); // 创建独占模式节点
    // Try the fast path of enq; backup to full enq on failure
    // 尝试将节点快速插入（CAS）等待队列，若失败则执行常规插入(enq方法)
    Node pred = tail;
    if (pred != null) {
        // 将节点的前驱节点指向尾节点
        node.prev = pred;
        // CAS 将尾节点修改为 node 节点
        if (compareAndSetTail(pred, node)) {
            pred.next = node;
            return node;
        }
    }
    // CAS失败，则执行常规插入
    enq(node);
    return node;
}

enq方法

常规插入，和快速插入有以下两点不同：

  1. 常规插入是自旋过程（for(;;)），能够保证节点插入成功
  2. 比快速插入多包含了1种情况：尾节点为空时（当前等待队列为空），需要初始化队列，再插入node节点。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
/**
 * Inserts node into queue, initializing if necessary. See picture above.
 * @param node the node to insert
 * @return node's predecessor
 */
private Node enq(final Node node) {
    for (;;) {
        Node t = tail;
        if (t == null) { // Must initialize
            if (compareAndSetHead(new Node()))
                tail = head;
        } else {
            node.prev = t;
            if (compareAndSetTail(t, node)) {
                t.next = node;
                return t;
            }
        }
    }
}

快速插入和常规插入均依赖CAS操作，其实现依赖于Unsafe类，Unsafe类中的cas操作均是native方法，由计算机CPU的cmpxchg指令来保证其原子性

1
2
3
4
5
6
7
8
9
10
11
12
13
private static final Unsafe unsafe = Unsafe.getUnsafe();
/**
 * CAS head field. Used only by enq.
 */
private final boolean compareAndSetHead(Node update) {
    return unsafe.compareAndSwapObject(this, headOffset, null, update);
}
/**
 * CAS tail field. Used only by enq.
 */
private final boolean compareAndSetTail(Node expect, Node update) {
    return unsafe.compareAndSwapObject(this, tailOffset, expect, update);
}

acquireQueued方法

基于CAS自旋不断尝试获取资源，如果前驱节点不是头结点，线程会被阻塞（park）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
/**
 * Acquires in exclusive uninterruptible mode for thread already in
 * queue. Used by condition wait methods as well as acquire.
 *
 * @param node the node
 * @param arg the acquire argument
 * @return {@code true} if interrupted while waiting
 */
final boolean acquireQueued(final Node node, int arg) {
    // 标识是否获取资源失败
    boolean failed = true;
    try {
        // 标识当前线程是否被中断过
        boolean interrupted = false;
        for (;;) {
            // 获取当前节点的前继节点
            final Node p = node.predecessor();
            // 如果前继节点为头结点，说明排队马上排到自己了，可以尝试获取资源
            if (p == head && tryAcquire(arg)) {
                // 获取资源成功，将当前节点设置为头结点
                setHead(node);
                p.next = null; // help GC（以方便虚拟机回收掉该前继节点）
                // 标识获取资源成功
                failed = false;
                // 返回是否被中断过标识
                return interrupted;
            }
            // 运行到这，说明前驱节点不是头结点或者尝试获取资源失败
            // 通过shouldParkAfterFailedAcquire方法判断是否需要阻塞该节点持有的线程
            // 若shouldParkAfterFailedAcquire函数返回true，则继续执行parkAndCheckInterrupt方法
            // 将该线程阻塞并检查是否被中断过（阻塞期间），若返回true，则将interrupted标志置于true
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                interrupted = true;
        }
    } finally {
        // 最终获取资源失败，则当前节点放弃获取资源
        if (failed)
            cancelAcquire(node);
    }
}
private void setHead(Node node) {
    head = node;
    node.thread = null; // 头结点的thread为空，表示正在运行的线程
    node.prev = null;
}

shouldParkAfterFailedAcquire方法

判断是否需要阻塞该节点持有的线程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
/**
 * Checks and updates status for a node that failed to acquire.
 * Returns true if thread should block. This is the main signal
 * control in all acquire loops.  Requires that pred == node.prev.
 *
 * @param pred node's predecessor holding status
 * @param node the node
 * @return {@code true} if thread should block
 */
private static boolean shouldParkAfterFailedAcquire(Node pred, Node node) {
    // 获取前继节点的waitStatus值
    int ws = pred.waitStatus;
    if (ws == Node.SIGNAL) // SIGNAL    = -1;
        /*
         * This node has already set status asking a release
         * to signal it, so it can safely park.
         */
        // 前驱节点 waitStatus = -1，表示前驱节点完成资源的释放或者中断后，会通知当前节点，不用自旋
        return true;
    if (ws > 0) {  // CANCELLED =  1;
        /*
         * Predecessor was cancelled. Skip over predecessors and
         * indicate retry.
         */
        // 前驱节点 waitStatus > 0，表示前驱节点处于放弃状态（CANCELLED）
        // 继续往前遍历，直到当前节点的前继节点的ws值为0或负数
        do {
            node.prev = pred = pred.prev;
        } while (pred.waitStatus > 0);
        pred.next = node;
    } else {
        /*
         * waitStatus must be 0 or PROPAGATE.  Indicate that we
         * need a signal, but don't park yet.  Caller will need to
         * retry to make sure it cannot acquire before parking.
         */
        // 如果前驱节点的ws值 < -1
        // 将前驱节点的ws值设置为Node.SIGNAL
        // 保证下次自旋(acquireQueued方法中的自旋)时，shouldParkAfterFailedAcquire直接返回true
        compareAndSetWaitStatus(pred, ws, Node.SIGNAL);
    }
    return false;
}

parkAndCheckInterrupt方法

调用LockSupport类的park()方法阻塞当前线程，并当前线程是否已经中断

1
2
3
4
5
6
7
8
9
10
/**
 * Convenience method to park and then check if interrupted
 *
 * @return {@code true} if interrupted
 */
private final boolean parkAndCheckInterrupt() {
    LockSupport.park(this); // 阻塞当前线程
    // 如果被唤醒，查看⾃己是不不是被中断的
    return Thread.interrupted();
}

Thread.interrupted()：获取当前线程的中断状态，并且重置中断状态

LockSupport

AQS使用了LockSupport类阻塞和唤醒线程，为什么不使用Object的wait/notify呢？

相比Object的wait/notify，LockSupport有两大优势：

  1. LockSupport不需要在同步代码块里 。所以线程间也不需要维护一个共享的同步对象了，实现了线程间的解耦。
  2. unpark函数可以先于park调用，所以不需要担心线程间的执行的先后顺序。

cancelAcquire

当failed为true时（表示获取资源失败），执行cancelAcquire方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
/**
 * Cancels an ongoing attempt to acquire.
 *
 * @param node the node
 */
private void cancelAcquire(Node node) {
    // Ignore if node doesn't exist
    if (node == null)
        return;

    node.thread = null;

    // Skip cancelled predecessors
    // 找出waitStatus不为1的前驱节点
    Node pred = node.prev;
    while (pred.waitStatus > 0)   // CANCELLED =  1
        node.prev = pred = pred.prev;

    // predNext is the apparent node to unsplice. CASes below will
    // fail if not, in which case, we lost race vs another cancel
    // or signal, so no further action is necessary.
    Node predNext = pred.next;

    // Can use unconditional write instead of CAS here.
    // After this atomic step, other Nodes can skip past us.
    // Before, we are free of interference from other threads.
    // 把当前node的状态设置为CANCELLED，当下一个node排队结束时，自己就会被处理掉
    node.waitStatus = Node.CANCELLED;

    // If we are the tail, remove ourselves.
    // 如果我们是尾节点，将前驱节点（waitStatus不为1）设置为尾节点
    if (node == tail && compareAndSetTail(node, pred)) {
        // 将当前节点从队列中移除
        compareAndSetNext(pred, predNext, null);
    } else {
        // If successor needs signal, try to set pred's next-link
        // so it will get one. Otherwise wake it up to propagate.
        int ws;
        // 如果前驱节点不是头节点，判断前驱节点的waitStatus是否等于Node.SIGNAL（-1）
        // 如果前驱节点的waitStatus不为-1，则设置为-1
        // 如果前驱节点的waitStatus为-1，或者被成功设置为-1
        //    把当前节点的前驱节点的后继指针指向当前节点的后继节点
        if (pred != head &&
            ((ws = pred.waitStatus) == Node.SIGNAL ||
                (ws <= 0 && compareAndSetWaitStatus(pred, ws, Node.SIGNAL))) &&
            pred.thread != null) {
            Node next = node.next;
            if (next != null && next.waitStatus <= 0)
                compareAndSetNext(pred, predNext, next);
        } else {
            // 如果前驱节点是头节点，或者前驱节点的waitStatus不为-1，设置-1失败了
            // 则唤醒当前节点的后继节点
            unparkSuccessor(node);
        }

        node.next = node; // help GC
    }
}

/**
 * Wakes up node's successor, if one exists.
 *
 * @param node the node
 */
private void unparkSuccessor(Node node) {
    /*
     * If status is negative (i.e., possibly needing signal) try
     * to clear in anticipation of signalling.  It is OK if this
     * fails or if status is changed by waiting thread.
     */
    int ws = node.waitStatus;
    if (ws < 0)
        compareAndSetWaitStatus(node, ws, 0);

    /*
     * Thread to unpark is held in successor, which is normally
     * just the next node.  But if cancelled or apparently null,
     * traverse backwards from tail to find the actual
     * non-cancelled successor.
     */
    Node s = node.next;
    if (s == null || s.waitStatus > 0) {
        s = null;
        // 如果node节点的后继节点为null，或者waitStatus为1，则从后向前遍历
        for (Node t = tail; t != null && t != node; t = t.prev)
            if (t.waitStatus <= 0)
                s = t;
    }
    if (s != null)
        LockSupport.unpark(s.thread);
}

总结

  1. 首先线程通过tryAcquire(arg)尝试获取共享资源，若获取成功则直接返回，若不成功，则将该线程以独占模式添加到等待队列尾部，tryAcquire(arg)由继承AQS的自定义同步器来具体实现；
  2. 当前线程加入等待队列后，会通过acquireQueued方法基于CAS自旋不断尝试获取资源，直至获取到资源；
  3. 自旋获取资源时，如果前驱节点不是头结点或获取资源失败，会阻塞线程（前驱节点释放资源时会被唤醒）
  4. 若在自旋过程中，线程被中断过，acquireQueued方法会标记此次中断，并返回true；
  5. 若acquireQueued方法获取到资源后，返回true，则执行线程自我中断操作selfInterrupt()。

release方法

以独占方式释放资源

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
/**
 * Releases in exclusive mode.  Implemented by unblocking one or
 * more threads if {@link #tryRelease} returns true.
 * This method can be used to implement method {@link Lock#unlock}.
 *
 * @param arg the release argument.  This value is conveyed to
 *        {@link #tryRelease} but is otherwise uninterpreted and
 *        can represent anything you like.
 * @return the value returned from {@link #tryRelease}
 */
public final boolean release(int arg) {
    if (tryRelease(arg)) { // tryRelease也是有继承AQS的自定义同步器来具体实现
        Node h = head;
        if (h != null && h.waitStatus != 0)
            unparkSuccessor(h); // 唤醒头结点的后继节点
        return true;
    }
    return false;
}

tryRelease方法

释放指定量的资源，tryRelease方法是模板方法，默认抛出UnsupportedOperationException异常，需要由子类即自定义同步器来实现。

unparkSuccessor方法

唤醒后继节点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
/**
 * Wakes up node's successor, if one exists.
 *
 * @param node the node
 */
private void unparkSuccessor(Node node) {
    /*
     * If status is negative (i.e., possibly needing signal) try
     * to clear in anticipation of signalling.  It is OK if this
     * fails or if status is changed by waiting thread.
     */
    int ws = node.waitStatus;
    if (ws < 0)
        compareAndSetWaitStatus(node, ws, 0);

    /*
     * Thread to unpark is held in successor, which is normally
     * just the next node.  But if cancelled or apparently null,
     * traverse backwards from tail to find the actual
     * non-cancelled successor.
     */
    Node s = node.next;
    if (s == null || s.waitStatus > 0) {
        s = null;
        // 如果node节点的后继节点为null，或者waitStatus为1，则从后向前遍历
        for (Node t = tail; t != null && t != node; t = t.prev)
            if (t.waitStatus <= 0)
                s = t;
    }
    if (s != null)
        LockSupport.unpark(s.thread);
}

为什么唤醒后继节点中，是从后向前遍历？

因为cancelAcquire方法的处理过程中只设置了next的变化，没有设置prev的变化，在最后有这样一行代码：node.next = node。并发情况下从前向后遍历的话，可能就死循环了，所以这时只有prev是稳定的。

唤醒后继节点的线程后，被唤醒的线程在parkAndCheckInterrupt方法，返回线程在park过程中是否被用户中断过，然后到acquireQueued方法中，如果该节点的前驱节点是头节点，则尝试获取资源，成功获取资源后，将是否被中断标识返回acquire方法，如果被中断过，那此时中断。如果被唤醒的线程所在节点的前继节点不是头结点，经过shouldParkAfterFailedAcquire的调整（清除无效（waitState=CANCELLED）的节点），也会移动到等待队列的前面，直到其前继节点为头结点。

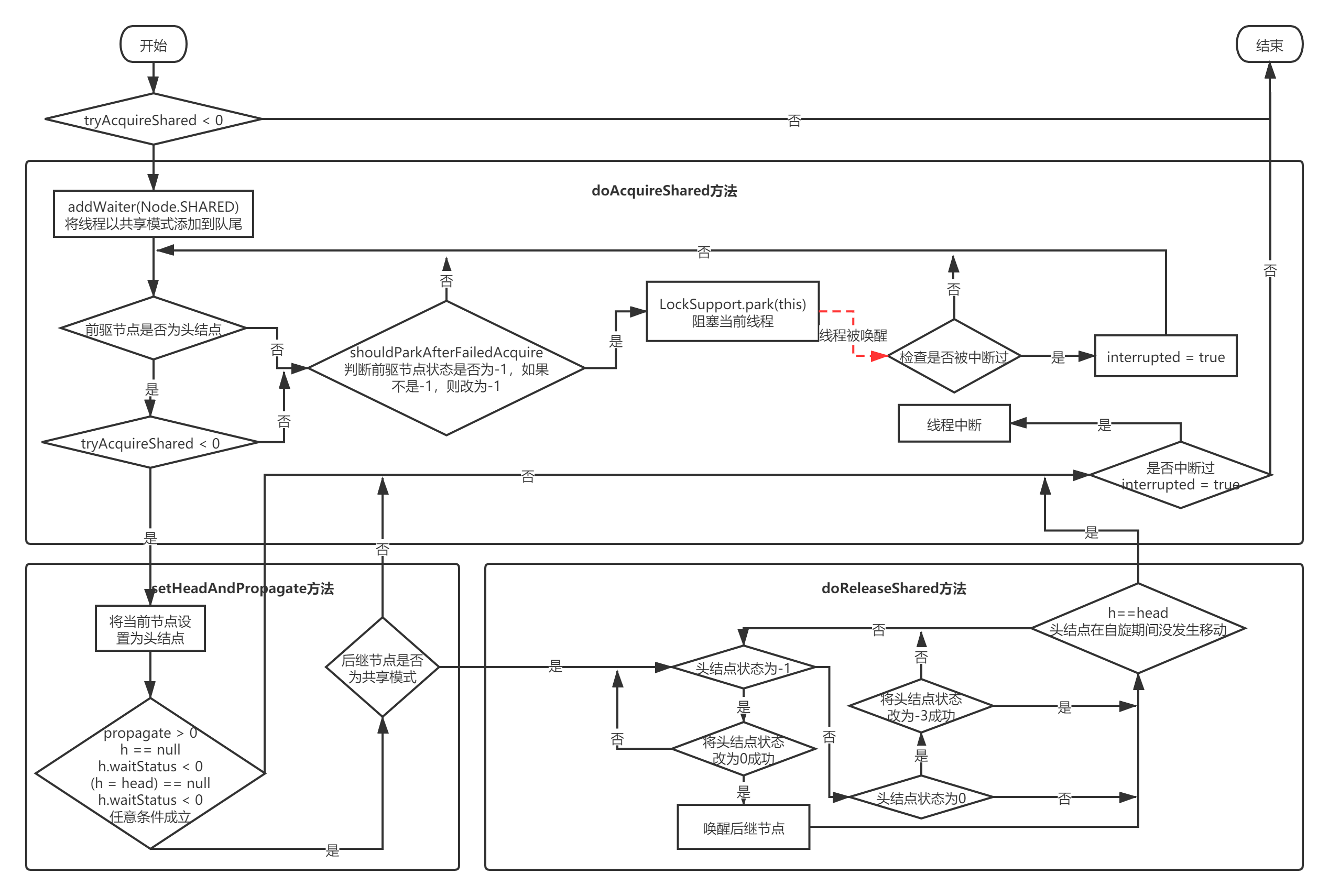

acquireShared方法

以共享方式获取资源

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
/**
 * Acquires in shared mode, ignoring interrupts.  Implemented by
 * first invoking at least once {@link #tryAcquireShared},
 * returning on success.  Otherwise the thread is queued, possibly
 * repeatedly blocking and unblocking, invoking {@link
 * #tryAcquireShared} until success.
 *
 * @param arg the acquire argument.  This value is conveyed to
 *        {@link #tryAcquireShared} but is otherwise uninterpreted
 *        and can represent anything you like.
 */
public final void acquireShared(int arg) {
    if (tryAcquireShared(arg) < 0) // 负数表示获取失败
        doAcquireShared(arg);
}

doAcquireShared方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
/**
 * Acquires in shared uninterruptible mode.
 * @param arg the acquire argument
 */
private void doAcquireShared(int arg) {
    // 将线程以共享模式添加到等待队列的尾部
    final Node node = addWaiter(Node.SHARED);
    // 标识是否获取资源失败
    boolean failed = true;
    try {
        // 标识当前线程是否被中断过
        boolean interrupted = false;
        for (;;) {
            // 获取当前节点的前驱节点
            final Node p = node.predecessor();
            if (p == head) {
                // 如果前驱节点是头结点，则尝试获取资源
                int r = tryAcquireShared(arg);
                // 如果获取资源成功，且有剩余资源，将自己设为头结点并唤醒后续的阻塞线程
                if (r >= 0) {
                    setHeadAndPropagate(node, r);
                    p.next = null; // help GC
                    if (interrupted) // 如果中断标志位为真，则线程执行自我了断
                        selfInterrupt();
                    // 表示获取资源成功
                    failed = false;
                    return;
                }
            }
            // 运行到这，说明前驱节点不是头结点或者尝试获取资源失败
            // 通过shouldParkAfterFailedAcquire方法判断是否需要阻塞该节点持有的线程
            // 若shouldParkAfterFailedAcquire函数返回true，则继续执行parkAndCheckInterrupt方法
            // 将该线程阻塞并检查是否被中断过（阻塞期间），若返回true，则将interrupted标志置于true
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                interrupted = true;
        }
    } finally {
        // 最终获取资源失败，则当前节点放弃获取资源
        if (failed)
            cancelAcquire(node);
    }
}

可以发现，doAcquireShared与独占模式下的acquireQueued大同小异，主要有3点不同：

  1. doAcquireShared以指定模式创建节点，并将其添加到等待队列的尾部的操作放在了方法体内部；
  2. doAcquireShared将线程的自我中断操作放在了方法体内部；
  3. 当线程获取到资源后，doAcquireShared会将当前线程所在的节点设为头结点，若资源有剩余则唤醒后续节点，比acquireQueued多了个唤醒后续节点的操作。

setHeadAndPropagate方法

将自己设为头结点并唤醒后续的阻塞线程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
/**
 * Sets head of queue, and checks if successor may be waiting
 * in shared mode, if so propagating if either propagate > 0 or
 * PROPAGATE status was set.
 *
 * @param node the node
 * @param propagate the return value from a tryAcquireShared
 */
private void setHeadAndPropagate(Node node, int propagate) {
    Node h = head; // Record old head for check below
    setHead(node); // 将自己设置为头节点
    /*
     * Try to signal next queued node if:
     *   Propagation was indicated by caller,
     *     or was recorded (as h.waitStatus either before
     *     or after setHead) by a previous operation
     *     (note: this uses sign-check of waitStatus because
     *      PROPAGATE status may transition to SIGNAL.)
     * and
     *   The next node is waiting in shared mode,
     *     or we don't know, because it appears null
     *
     * The conservatism in both of these checks may cause
     * unnecessary wake-ups, but only when there are multiple
     * racing acquires/releases, so most need signals now or soon
     * anyway.
     */
    // 如果资源还有剩余，则唤醒后继节点
    if (propagate > 0 || h == null || h.waitStatus < 0 ||
        (h = head) == null || h.waitStatus < 0) {
        Node s = node.next;
        if (s == null || s.isShared())
            doReleaseShared();
    }
}
private void setHead(Node node) {
    head = node;
    node.thread = null;
    node.prev = null;
}

doReleaseShared方法

向后继节点发出信号并确保传播

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
/**
 * Release action for shared mode -- signals successor and ensures
 * propagation. (Note: For exclusive mode, release just amounts
 * to calling unparkSuccessor of head if it needs signal.)
 */
private void doReleaseShared() {
    /*
     * Ensure that a release propagates, even if there are other
     * in-progress acquires/releases.  This proceeds in the usual
     * way of trying to unparkSuccessor of head if it needs
     * signal. But if it does not, status is set to PROPAGATE to
     * ensure that upon release, propagation continues.
     * Additionally, we must loop in case a new node is added
     * while we are doing this. Also, unlike other uses of
     * unparkSuccessor, we need to know if CAS to reset status
     * fails, if so rechecking.
     */
    for (;;) {
        Node h = head;
        if (h != null && h != tail) {
            int ws = h.waitStatus;
            // 若head节点状态为SIGNAL，则自旋CAS状态设置为0之后才能唤醒head结点的后继节点
            if (ws == Node.SIGNAL) { // SIGNAL = -1
                if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0)) // SIGNAL = -1
                    continue;            // loop to recheck cases
                // 唤醒后继节点
                unparkSuccessor(h);
            }
            // 若head节点状态为0，则自旋CAS将节点状态设置为PROPAGATE
            else if (ws == 0 &&
                        !compareAndSetWaitStatus(h, 0, Node.PROPAGATE)) // PROPAGATE = -3
                continue;                // loop on failed CAS
        }
        // head指针在自旋期间未发生移动的话，跳出自旋
        if (h == head)                   // loop if head changed
            break;
    }
}

Node.PROPAGATE的作用

学习AQS的过程中，发现Propagate这个状态并没有被显示地使用。

具体可参考：

  1. https://www.cnblogs.com/micrari/p/6937995.html（推荐）
  2. https://www.zhihu.com/question/295925198

releaseShared方法

以共享方式释放资源

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/**
 * Releases in shared mode.  Implemented by unblocking one or more
 * threads if {@link #tryReleaseShared} returns true.
 *
 * @param arg the release argument.  This value is conveyed to
 *        {@link #tryReleaseShared} but is otherwise uninterpreted
 *        and can represent anything you like.
 * @return the value returned from {@link #tryReleaseShared}
 */
public final boolean releaseShared(int arg) {
    if (tryReleaseShared(arg)) {
        doReleaseShared(); // 唤醒后继节点
        return true;
    }
    return false;
}

整个获取/释放资源的过程是通过传播完成的，如最开始有10个资源，线程A、B、C分别需要5、4、3个资源。

  1. A线程获取到5个资源，其发现资源还剩余5个，则唤醒B线程；
  2. B线程获取到4个资源，其发现资源还剩余1个，唤醒C线程；
  3. C线程尝试取3个资源，但发现只有1个资源，继续阻塞；
  4. A线程释放1个资源，其发现资源还剩余2个，故唤醒C线程；
  5. C线程尝试取3个资源，但发现只有2个资源，继续阻塞；
  6. B线程释放2个资源，其发现资源还剩余4个，唤醒C线程；
  7. C线程获取3个资源，其发现资源还剩1个，继续唤醒后继线程…

Condition

Condition是一个接口，AQS中实现了Condition接口

1
2
public interface Condition {
public class ConditionObject implements Condition, java.io.Serializable {

Condition定义了等待/通知两种类型的方法，当前线程调用这些方法时，需要提前获取到Condition关联的锁。

Condition对象由Lock对象(调用Lock的newCondition()方法)创建出来的，换句话说，Condition是依赖Lock对象的。

使用案例

可参考：LinkedBlockingQueue源码

关键成员变量

1
2
3
4
5
6
7
8
/** First node of condition queue. */
private transient Node firstWaiter;
/** Last node of condition queue. */
private transient Node lastWaiter;
/** Mode meaning to reinterrupt on exit from wait */
private static final int REINTERRUPT =  1;
/** Mode meaning to throw InterruptedException on exit from wait */
private static final int THROW_IE    = -1;

从上面可以看出条件队列也是一个Node节点组成的双向链表

await方法

调用await方法的线程肯定是持有锁的线程，即同步队列的头节点（因为调用Condition之前，必须获取到资源）。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
public final void await() throws InterruptedException {
    // 如果当前线程被中断，抛出中断异常
    if (Thread.interrupted())
        throw new InterruptedException();
    // 将当前线程添加到Condition条件队列
    Node node = addConditionWaiter();
    // 完全释放当前线程持有的锁，并返回锁之前持有的状态值
    int savedState = fullyRelease(node);
    int interruptMode = 0;
    while (!isOnSyncQueue(node)) {
        // 如果当前线程不在同步队列中，则挂起该线程
        LockSupport.park(this);
        // 被唤醒的时机有2个：
        // 1. 当前线程被中断
        // 2. 当前线程被signal

        // 当前线程被唤醒，检查该线程是否在挂起期间被中断过，若被中断过，跳出while循环
        if ((interruptMode = checkInterruptWhileWaiting(node)) != 0)
            break;
    }
    // 被唤醒后，将进入AQS的CLH同步队列，重新获取锁
    if (acquireQueued(node, savedState) && interruptMode != THROW_IE)
        interruptMode = REINTERRUPT;
    if (node.nextWaiter != null) // clean up if cancelled
        unlinkCancelledWaiters();
    if (interruptMode != 0)
        reportInterruptAfterWait(interruptMode);
}
private void reportInterruptAfterWait(int interruptMode)
    throws InterruptedException {
    if (interruptMode == THROW_IE) // THROW_IE：说明在被signal之前中断
        throw new InterruptedException(); // 清除已取消的节点
    else if (interruptMode == REINTERRUPT) // REINTERRUPT：说明在被signal之后中断
        selfInterrupt();
}

addConditionWaiter方法

将当前线程添加进Condition条件队列

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
/**
 * Adds a new waiter to wait queue.
 * @return its new wait node
 */
private Node addConditionWaiter() {
    Node t = lastWaiter; // 条件队列尾节点
    // If lastWaiter is cancelled, clean out.
    // 如果尾节点线程已取消，则执行unlinkCancelledWaiters清除已取消的节点
    if (t != null && t.waitStatus != Node.CONDITION) {
        unlinkCancelledWaiters();
        t = lastWaiter;
    }
    // 将当前线程封装为Node节点，状态为Node.CONDITION
    Node node = new Node(Thread.currentThread(), Node.CONDITION);
    if (t == null)
        firstWaiter = node;  // 如果尾节点为null，证明条件队列为空，则将头节点指针指向当前节点
    else
        t.nextWaiter = node; // 当前节点作为尾节点的后继节点
    lastWaiter = node;
    return node;
}
private void unlinkCancelledWaiters() {
    Node t = firstWaiter;
    Node trail = null; // 辅助节点
    while (t != null) {
        Node next = t.nextWaiter;
        if (t.waitStatus != Node.CONDITION) {
            t.nextWaiter = null;
            if (trail == null)
                firstWaiter = next;
            else
                trail.nextWaiter = next;
            if (next == null)
                lastWaiter = trail;
        }
        else
            trail = t;
        t = next;
    }
}

fullyRelease方法

完全释放当前线程持有的锁，并返回锁之前持有的状态值

考虑一下这里的 savedState。如果在 condition1.await() 之前，假设线程先执行了 2 次 lock() 操作，那么 state 为 2，我们理解为该线程持有 2 把锁，这里 await() 方法必须将 state 设置为 0，然后再进入挂起状态，这样其他线程才能持有锁。当它被唤醒的时候，它需要重新持有 2 把锁，才能继续下去。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
/**
 * Invokes release with current state value; returns saved state.
 * Cancels node and throws exception on failure.
 * @param node the condition node for this wait
 * @return previous sync state
 */
final int fullyRelease(Node node) {
    boolean failed = true;
    try {
        int savedState = getState();// 获取当前线程持有锁的状态值
        if (release(savedState)) {
            // 释放锁成功，返回锁之前持有的状态值
            failed = false;
            return savedState;
        } else {
            throw new IllegalMonitorStateException();
        }
    } finally {
        // 若最终失败，将当前节点的状态修改为Node.CANCELLED
        if (failed)
            node.waitStatus = Node.CANCELLED;
    }
}

如果一个线程在不持有 lock 的基础上，就去调用 condition1.await() 方法，它能进入条件队列，但是在上面的这个方法中，由于它不持有锁，release(savedState) 这个方法肯定要返回 false，进入到异常分支，然后进入 finally 块设置 node.waitStatus = Node.CANCELLED，这个已经入队的节点之后会被后继的节点清除。

checkInterruptWhileWaiting方法

检查线程是否在挂起期间被中断过

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
// 检查线程挂起期间的中断状态：
// 1.若在被signal之前中断，则返回THROW_IE -1
// 2.若在被signal之后中断，则返回REINTERRUPT 1
// 3.若没有被中断，则返回0
private int checkInterruptWhileWaiting(Node node) {
    return Thread.interrupted() ?
        (transferAfterCancelledWait(node) ? THROW_IE : REINTERRUPT) :
        0;
}
// 如果线程在被signal之前cancell，则返回true
final boolean transferAfterCancelledWait(Node node) {
    // 在被signal后节点的等待状态会被改为0，所以如果cas失败，则说明还没被signal
    if (compareAndSetWaitStatus(node, Node.CONDITION, 0)) {
        enq(node);
        return true;
    }
    while (!isOnSyncQueue(node))
        Thread.yield();
    return false;
}

signal方法

唤醒在条件等待队列中等待时间最长的节点(首节点)，在唤醒节点之前，会将节点移动到AQS的CLH同步队列中。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/**
 * Moves the longest-waiting thread, if one exists, from the
 * wait queue for this condition to the wait queue for the
 * owning lock.
 *
 * @throws IllegalMonitorStateException if {@link #isHeldExclusively}
 *         returns {@code false}
 */
public final void signal() {
    // 如果当前线程不是持有该condition的锁，抛IllegalMonitorStateException异常
    if (!isHeldExclusively())
        throw new IllegalMonitorStateException();
    Node first = firstWaiter;
    if (first != null)
        doSignal(first);
}

doSignal方法

将头节点转移到AQS的CLH同步队列

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
/**
 * Removes and transfers nodes until hit non-cancelled one or
 * null. Split out from signal in part to encourage compilers
 * to inline the case of no waiters.
 * @param first (non-null) the first node on condition queue
 */
private void doSignal(Node first) {
    do {
        // 头节点指针往后移动一个节点
        // 若当前头结点的后继节点为null，则尾节点置为null
        if ( (firstWaiter = first.nextWaiter) == null)
            lastWaiter = null;
        // 将之前头节点的后继节点置为null，便于GC
        first.nextWaiter = null;
        // 头节点未成功转移到AQS的CLH同步队列且头节点不为null，继续自旋
    } while (!transferForSignal(first) &&
                (first = firstWaiter) != null);
}
// 用于将条件队列节点转移到AQS的CLH同步队列
final boolean transferForSignal(Node node) {
    // 如果CAS失败，说明节点在signal之前被取消了，返回false
    // 设置入队节点的等待状态为0
    if (!compareAndSetWaitStatus(node, Node.CONDITION, 0))
        return false;
    // 设置成功则AQS的CLH同步队列尾部.
    Node p = enq(node);
    // 获取入队节点的前继节点的状态
    int ws = p.waitStatus;
    // 1. 如果前继节点取消，则直接唤醒当前节点线程
    // 2. 如果为非取消节点则将前继节点设置为SIGNAL（等前驱节点唤醒自己）
    if (ws > 0 || !compareAndSetWaitStatus(p, ws, Node.SIGNAL))
        LockSupport.unpark(node.thread);
    return true;
}

线程被唤醒后，则会进入checkInterruptWhileWaiting方法

signalAll方法

唤醒在条件等待队列中所有的节点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
/**
 * Moves all threads from the wait queue for this condition to
 * the wait queue for the owning lock.
 *
 * @throws IllegalMonitorStateException if {@link #isHeldExclusively}
 *         returns {@code false}
 */
public final void signalAll() {
    // 如果当前线程不是持有该condition的锁，抛IllegalMonitorStateException异常
    if (!isHeldExclusively())
        throw new IllegalMonitorStateException();
    Node first = firstWaiter;
    if (first != null)
        doSignalAll(first);
}

doSignalAll方法

将所有节点转移到AQS的CLH同步队列

1
2
3
4
5
6
7
8
9
10
11
12
13
14
/**
 * Removes and transfers all nodes.
 * @param first (non-null) the first node on condition queue
 */
private void doSignalAll(Node first) {
    lastWaiter = firstWaiter = null;
    do {
        Node next = first.nextWaiter;
        first.nextWaiter = null;
        // 将节点转移到AQS的CLH同步队列
        transferForSignal(first);
        first = next;
    } while (first != null);
}

await方法-指定超时时间

和await方法很类似，主要是挂起线程改成挂起线程加上超时时间

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
/**
 * Implements timed condition wait.
 * <ol>
 * <li> If current thread is interrupted, throw InterruptedException.
 * <li> Save lock state returned by {@link #getState}.
 * <li> Invoke {@link #release} with saved state as argument,
 *      throwing IllegalMonitorStateException if it fails.
 * <li> Block until signalled, interrupted, or timed out.
 * <li> Reacquire by invoking specialized version of
 *      {@link #acquire} with saved state as argument.
 * <li> If interrupted while blocked in step 4, throw InterruptedException.
 * <li> If timed out while blocked in step 4, return false, else true.
 * </ol>
 */
public final boolean await(long time, TimeUnit unit)
        throws InterruptedException {
    long nanosTimeout = unit.toNanos(time);
    if (Thread.interrupted())
        throw new InterruptedException();
    Node node = addConditionWaiter();
    int savedState = fullyRelease(node);
    final long deadline = System.nanoTime() + nanosTimeout;
    boolean timedout = false;
    int interruptMode = 0;
    while (!isOnSyncQueue(node)) {
        if (nanosTimeout <= 0L) {
            timedout = transferAfterCancelledWait(node);
            break;
        }
        if (nanosTimeout >= spinForTimeoutThreshold)
            LockSupport.parkNanos(this, nanosTimeout);
        if ((interruptMode = checkInterruptWhileWaiting(node)) != 0)
            break;
        nanosTimeout = deadline - System.nanoTime();
    }
    if (acquireQueued(node, savedState) && interruptMode != THROW_IE)
        interruptMode = REINTERRUPT;
    if (node.nextWaiter != null)
        unlinkCancelledWaiters();
    if (interruptMode != 0)
        reportInterruptAfterWait(interruptMode);
    return !timedout;
}

AbstractQueuedLongSynchronizer

AbstractQueuedLongSynchronizer具有与AbstractQueuedSynchronizer完全相同的结构，属性和方法，但所有与状态相关的参数和结果都定义为long而不是int 。 在创建同步器（如多级锁和需要64位状态的障碍）时，此类可能很有用。

坚持原创技术分享，您的支持将鼓励我继续创作！
