RedissonLock源码分析

RLock是Redisson中一种可重入的分布式锁，RLock是一个接口，同时继承了java.util.concurrent.locks.Lock接口。

RedissonLock是RLock接口的默认实现，是一种非公平的，可重入的分布式锁。并且内部实现了一个监控锁的看门狗，它的作用是在Redisson实例被关闭前，不断的延长锁的有效期，防止业务执行较长导致锁被自动释放。默认情况下，看门狗的检查锁的超时时间是30秒钟，也可以通过修改Config.lockWatchdogTimeout来另行指定。

Redisson版本：3.13.3

使用案例

RLock继承了java.util.concurrent.locks.Lock接口，使用方式和Lock一样：

Lock l = redissonClient.getLock("name");
l.lock();
try {
    // access the resource protected by this lock
} finally {
    l.unlock();
}

RedissonLock源码分析

RedissonLock使用方法如下：

public String test1() {
    RLock lock = redissonClient.getLock("good");
    lock.lock();
    try {
        // 减库存
        NUM--;
    } finally {
        lock.unlock();
    }
    return "减库存成功，NUM=" + NUM;
}

redissonClient.getLock(“good”)

getLock默认初始化了一个RedissonLock实例

/**
 * Returns Lock instance by name.
 * <p>
 * Implements a <b>non-fair</b> locking so doesn't guarantees an acquire order by threads.
 * <p>
 * To increase reliability during failover, all operations wait for propagation to all Redis slaves.
 *
 * @param name - name of object
 * @return Lock object
 */
RLock getLock(String name);

@Override
public RLock getLock(String name) {
    return new RedissonLock(connectionManager.getCommandExecutor(), name);
}

RedissonLock构造方法

public RedissonLock(CommandAsyncExecutor commandExecutor, String name) {
    super(commandExecutor, name);
    this.commandExecutor = commandExecutor;
    this.id = commandExecutor.getConnectionManager().getId();
    this.internalLockLeaseTime = commandExecutor.getConnectionManager().getCfg().getLockWatchdogTimeout();
    this.entryName = id + ":" + name;
    this.pubSub = commandExecutor.getConnectionManager().getSubscribeService().getLockPubSub();
}

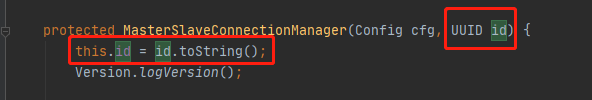

id是一个UUID，用于保证自己持有的锁不会被其他线程解锁，因为用的同一个commandExecutor对象，所以这里不会重复生成UUID。

internalLockLeaseTime是锁的超时时间，默认是30s。

lock方法

加锁

leaseTime表示锁的超时时间，对应Redis中key的过期时间

@Override
public void lock() {
    try {
        lock(-1, null, false);
    } catch (InterruptedException e) {
        throw new IllegalStateException();
    }
}
@Override
public void lock(long leaseTime, TimeUnit unit) {
    try {
        lock(leaseTime, unit, false);
    } catch (InterruptedException e) {
        throw new IllegalStateException();
    }
}

private void lock(long leaseTime, TimeUnit unit, boolean interruptibly) throws InterruptedException {
        long threadId = Thread.currentThread().getId();
    	// 尝试加锁，加锁失败则返回锁的ttl
        Long ttl = tryAcquire(-1, leaseTime, unit, threadId);
        // lock acquired
        if (ttl == null) { // ttl为空表示加锁成功
            return;
        }
        // 订阅锁释放事件
        RFuture<RedissonLockEntry> future = subscribe(threadId);
        if (interruptibly) {
            commandExecutor.syncSubscriptionInterrupted(future);
        } else {
            commandExecutor.syncSubscription(future);
        }

        try {
            while (true) {
                // 尝试获取锁，加锁失败则返回锁的ttl
                ttl = tryAcquire(-1, leaseTime, unit, threadId);
                // lock acquired
                if (ttl == null) { // ttl为空表示加锁成功
                    break;
                }

                // waiting for message
                if (ttl >= 0) {
                    try {
                        // 通过信号量来阻塞线程，每次阻塞时间为锁的剩余过期时间
                        future.getNow().getLatch().tryAcquire(ttl, TimeUnit.MILLISECONDS);
                    } catch (InterruptedException e) {
                        if (interruptibly) {
                            throw e;
                        }
                        future.getNow().getLatch().tryAcquire(ttl, TimeUnit.MILLISECONDS);
                    }
                } else {
                    if (interruptibly) {
                        future.getNow().getLatch().acquire();
                    } else {
                        future.getNow().getLatch().acquireUninterruptibly();
                    }
                }
            }
        } finally {
            // 取消订阅
            unsubscribe(future, threadId);
        }
//        get(lockAsync(leaseTime, unit));
    }

tryAcquire方法

尝试加锁，如果加锁失败则返回锁还有多少毫秒过期，加锁成功则返回空

private Long tryAcquire(long waitTime, long leaseTime, TimeUnit unit, long threadId) {
    return get(tryAcquireAsync(waitTime, leaseTime, unit, threadId));
}

protected final <V> V get(RFuture<V> future) {
    return commandExecutor.get(future);
}

private <T> RFuture<Long> tryAcquireAsync(long waitTime, long leaseTime, TimeUnit unit, long threadId) {
    if (leaseTime != -1) {
        return tryLockInnerAsync(waitTime, leaseTime, unit, threadId, RedisCommands.EVAL_LONG);
    }
    RFuture<Long> ttlRemainingFuture = tryLockInnerAsync(waitTime,
                                                         commandExecutor.getConnectionManager().getCfg().getLockWatchdogTimeout(),
                                                         TimeUnit.MILLISECONDS, threadId, RedisCommands.EVAL_LONG);
    ttlRemainingFuture.onComplete((ttlRemaining, e) -> {
        if (e != null) {
            return;
        }

        // lock acquired
        if (ttlRemaining == null) { // 加锁成功，则启动看门狗用于续锁
            scheduleExpirationRenewal(threadId);
        }
    });
    return ttlRemainingFuture;
}
// 尝试加锁
<T> RFuture<T> tryLockInnerAsync(long waitTime, long leaseTime, TimeUnit unit, long threadId, RedisStrictCommand<T> command) {
    internalLockLeaseTime = unit.toMillis(leaseTime);

    return evalWriteAsync(getName(), LongCodec.INSTANCE, command,
                          "if (redis.call('exists', KEYS[1]) == 0) then " +
                          "redis.call('hincrby', KEYS[1], ARGV[2], 1); " +
                          "redis.call('pexpire', KEYS[1], ARGV[1]); " +
                          "return nil; " +
                          "end; " +
                          "if (redis.call('hexists', KEYS[1], ARGV[2]) == 1) then " +
                          "redis.call('hincrby', KEYS[1], ARGV[2], 1); " +
                          "redis.call('pexpire', KEYS[1], ARGV[1]); " +
                          "return nil; " +
                          "end; " +
                          "return redis.call('pttl', KEYS[1]);",
                          Collections.singletonList(getName()), internalLockLeaseTime, getLockName(threadId));
}

lua脚本 加锁

这里使用了lua脚本来保证加锁操作的原子性

if (redis.call('exists', KEYS[1]) == 0) then
    redis.call('hincrby', KEYS[1], ARGV[2], 1);
    redis.call('pexpire', KEYS[1], ARGV[1]);
    return nil;
end;
if (redis.call('hexists', KEYS[1], ARGV[2]) == 1) then
    redis.call('hincrby', KEYS[1], ARGV[2], 1);
    redis.call('pexpire', KEYS[1], ARGV[1]);
    return nil;
end;
return redis.call('pttl', KEYS[1]);

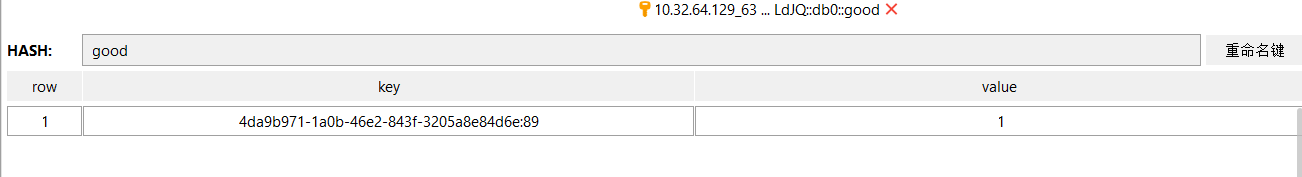

1. 如果锁不存在，则创建锁（Hash结构）。然后使用hincrby命令（如果key不存在，value则为0），相当于往这个Hash中添加：Key为”uuid:线程id“，value为”1“（key使用uuid+线程id是为了保证不被其他线程解锁，value则表示锁的重入次数）。然后设置锁Hash的过期时间，返回null。
2. 如果锁已存在并且value存在于Hash中，说明是自己加的锁，则将锁的重入次数+1，然后设置锁的过期时间，返回null。
3. 锁存在，但不是自己创建的，则返回锁还有多少毫秒过期。

Watch Dog 续锁

设置定时任务每隔1/3的过期时间进行续锁，解锁时也会取消续锁。

private void scheduleExpirationRenewal(long threadId) {
    ExpirationEntry entry = new ExpirationEntry();
    ExpirationEntry oldEntry = EXPIRATION_RENEWAL_MAP.putIfAbsent(getEntryName(), entry);
    if (oldEntry != null) { // 已经启动过，则无需启动
        oldEntry.addThreadId(threadId);
    } else {
        entry.addThreadId(threadId);
        renewExpiration();
    }
}

private void renewExpiration() {
    ExpirationEntry ee = EXPIRATION_RENEWAL_MAP.get(getEntryName());
    if (ee == null) {
        return;
    }

    Timeout task = commandExecutor.getConnectionManager().newTimeout(new TimerTask() {
        @Override
        public void run(Timeout timeout) throws Exception {
            ExpirationEntry ent = EXPIRATION_RENEWAL_MAP.get(getEntryName());
            if (ent == null) {
                return;
            }
            Long threadId = ent.getFirstThreadId();
            if (threadId == null) {
                return;
            }

            RFuture<Boolean> future = renewExpirationAsync(threadId);
            future.onComplete((res, e) -> {
                if (e != null) {
                    log.error("Can't update lock " + getName() + " expiration", e);
                    return;
                }

                if (res) {
                    // reschedule itself
                    renewExpiration();
                }
            });
        }
    }, internalLockLeaseTime / 3, TimeUnit.MILLISECONDS);

    ee.setTimeout(task);
}

// 判断自己是不是还持有锁，如果持有锁则重新设置过期时间，返回1，没有持有锁则返回0
protected RFuture<Boolean> renewExpirationAsync(long threadId) {
    return evalWriteAsync(getName(), LongCodec.INSTANCE, RedisCommands.EVAL_BOOLEAN,
                          "if (redis.call('hexists', KEYS[1], ARGV[2]) == 1) then " +
                          "redis.call('pexpire', KEYS[1], ARGV[1]); " +
                          "return 1; " +
                          "end; " +
                          "return 0;",
                          Collections.singletonList(getName()),
                          internalLockLeaseTime, getLockName(threadId));
}

定时任务-netty时间轮

netty的时间轮算法的解读

• 时间轮是一种高效利用线程资源来进行批量化调度的一种调度模型（调度任务全部都绑定到同一个的调度器）。
• 时间轮调度器的时间精度可能不是很高，取决于时间段“指针”单元的最小粒度大小。
• 串行执行，所有的任务是依次执行，容易出现调度超时和任务堆集的情况。
• 无法再宕机之后恢复任务重新调度。

public class MasterSlaveConnectionManager implements ConnectionManager {

    private HashedWheelTimer timer;
    // timer = new HashedWheelTimer(new DefaultThreadFactory("redisson-timer"), minTimeout, TimeUnit.MILLISECONDS, 1024, false);
}

subscribe方法

订阅锁释放事件，设置监听器

protected RFuture<RedissonLockEntry> subscribe(long threadId) {
    return pubSub.subscribe(getEntryName(), getChannelName());
}
// entryName:e23eb663-8186-4efa-8cb5-bc817533c903:good
// channelName:redisson_lock__channel:{good}
public RFuture<E> subscribe(String entryName, String channelName) {
    AtomicReference<Runnable> listenerHolder = new AtomicReference<Runnable>();
    AsyncSemaphore semaphore = service.getSemaphore(new ChannelName(channelName));
    RPromise<E> newPromise = new RedissonPromise<E>() {
        @Override
        public boolean cancel(boolean mayInterruptIfRunning) {
            return semaphore.remove(listenerHolder.get());
        }
    };

    Runnable listener = new Runnable() {

        @Override
        public void run() {
            E entry = entries.get(entryName);
            if (entry != null) {
                entry.acquire();
                semaphore.release();
                entry.getPromise().onComplete(new TransferListener<E>(newPromise));
                return;
            }

            E value = createEntry(newPromise);
            value.acquire();

            E oldValue = entries.putIfAbsent(entryName, value);
            if (oldValue != null) {
                oldValue.acquire();
                semaphore.release();
                oldValue.getPromise().onComplete(new TransferListener<E>(newPromise));
                return;
            }

            RedisPubSubListener<Object> listener = createListener(channelName, value);
            service.subscribe(LongCodec.INSTANCE, channelName, semaphore, listener);
        }
    };
    semaphore.acquire(listener);
    listenerHolder.set(listener);

    return newPromise;
}

@Override
protected void onMessage(RedissonLockEntry value, Long message) {
    if (message.equals(UNLOCK_MESSAGE)) {
        // 锁释放，唤醒监听器
        Runnable runnableToExecute = value.getListeners().poll();
        if (runnableToExecute != null) {
            runnableToExecute.run();
        }
        // 释放信号量，被阻塞线程会被唤醒
        value.getLatch().release();
    } else if (message.equals(READ_UNLOCK_MESSAGE)) {
        while (true) {
            Runnable runnableToExecute = value.getListeners().poll();
            if (runnableToExecute == null) {
                break;
            }
            runnableToExecute.run();
        }

        value.getLatch().release(value.getLatch().getQueueLength());
    }
}

tryLock方法

尝试加锁，设置最大等待时间

@Override
public boolean tryLock(long waitTime, TimeUnit unit) throws InterruptedException {
    return tryLock(waitTime, -1, unit);
}

@Override
public boolean tryLock(long waitTime, long leaseTime, TimeUnit unit) throws InterruptedException {
    long time = unit.toMillis(waitTime);
    long current = System.currentTimeMillis();
    long threadId = Thread.currentThread().getId();
    Long ttl = tryAcquire(waitTime, leaseTime, unit, threadId);
    // lock acquired
    if (ttl == null) {
        return true;
    }

    time -= System.currentTimeMillis() - current;
    if (time <= 0) { // 等待超时了，设置获取锁失败
        acquireFailed(waitTime, unit, threadId);
        return false;
    }

    current = System.currentTimeMillis();
    // 订阅锁释放事件
    RFuture<RedissonLockEntry> subscribeFuture = subscribe(threadId);
    // 如果返回false，说明等待超时了，锁可能自动释放，但没发布锁释放事件
    if (!subscribeFuture.await(time, TimeUnit.MILLISECONDS)) {
        if (!subscribeFuture.cancel(false)) {
            subscribeFuture.onComplete((res, e) -> {
                if (e == null) {
                    unsubscribe(subscribeFuture, threadId); // 取消订阅
                }
            });
        }
        // 等待超时了，设置获取锁失败
        acquireFailed(waitTime, unit, threadId);
        return false;
    }

    try {
        // 重新计算锁的剩余时间
        time -= System.currentTimeMillis() - current;
        if (time <= 0) { // 等待超时了，设置获取锁失败
            acquireFailed(waitTime, unit, threadId);
            return false;
        }

        while (true) { //不超时的情况下，循环等待锁释放
            long currentTime = System.currentTimeMillis();
            ttl = tryAcquire(waitTime, leaseTime, unit, threadId);
            // lock acquired
            if (ttl == null) { // ttl为空表示加锁成功
                return true;
            }

            time -= System.currentTimeMillis() - currentTime;
            if (time <= 0) { // 等待超时了，设置获取锁失败
                acquireFailed(waitTime, unit, threadId);
                return false;
            }

            // waiting for message
            currentTime = System.currentTimeMillis();
            if (ttl >= 0 && ttl < time) {
                // 通过信号量来阻塞线程，每次阻塞时间为锁的剩余过期时间
                subscribeFuture.getNow().getLatch().tryAcquire(ttl, TimeUnit.MILLISECONDS);
            } else {
                subscribeFuture.getNow().getLatch().tryAcquire(time, TimeUnit.MILLISECONDS);
            }

            time -= System.currentTimeMillis() - currentTime;
            if (time <= 0) { // 等待超时了，设置获取锁失败
                acquireFailed(waitTime, unit, threadId);
                return false;
            }
        }
    } finally {
        // 最后，取消订阅
        unsubscribe(subscribeFuture, threadId);
    }
    //        return get(tryLockAsync(waitTime, leaseTime, unit));
}

unLock方法

解锁，

@Override
public void unlock() {
    try {
        get(unlockAsync(Thread.currentThread().getId()));
    } catch (RedisException e) {
        if (e.getCause() instanceof IllegalMonitorStateException) {
            throw (IllegalMonitorStateException) e.getCause();
        } else {
            throw e;
        }
    }
}

@Override
public RFuture<Void> unlockAsync(long threadId) {
    RPromise<Void> result = new RedissonPromise<Void>();
    RFuture<Boolean> future = unlockInnerAsync(threadId);

    future.onComplete((opStatus, e) -> {
        cancelExpirationRenewal(threadId); // 取消看门狗续锁任务

        if (e != null) {
            result.tryFailure(e);
            return;
        }

        if (opStatus == null) { // 返回为空，则抛出IllegalMonitorStateException异常
            IllegalMonitorStateException cause = new IllegalMonitorStateException("attempt to unlock lock, not locked by current thread by node id: "
                                                                                  + id + " thread-id: " + threadId);
            result.tryFailure(cause); // 设置解锁失败
            return;
        }

        result.trySuccess(null);
    });

    return result;
}

protected RFuture<Boolean> unlockInnerAsync(long threadId) {
    return evalWriteAsync(getName(), LongCodec.INSTANCE, RedisCommands.EVAL_BOOLEAN,
                          "if (redis.call('hexists', KEYS[1], ARGV[3]) == 0) then " +
                          "return nil;" +
                          "end; " +
                          "local counter = redis.call('hincrby', KEYS[1], ARGV[3], -1); " +
                          "if (counter > 0) then " +
                          "redis.call('pexpire', KEYS[1], ARGV[2]); " +
                          "return 0; " +
                          "else " +
                          "redis.call('del', KEYS[1]); " +
                          "redis.call('publish', KEYS[2], ARGV[1]); " +
                          "return 1; " +
                          "end; " +
                          "return nil;",
                          Arrays.asList(getName(), getChannelName()), LockPubSub.UNLOCK_MESSAGE, internalLockLeaseTime, getLockName(threadId));
}

lua脚本 解锁

if (redis.call('hexists', KEYS[1], ARGV[3]) == 0) then
    return nil;
end;
local counter = redis.call('hincrby', KEYS[1], ARGV[3], -1);
if (counter > 0) then
    redis.call('pexpire', KEYS[1], ARGV[2]);
    return 0;
else
    redis.call('del', KEYS[1]);
    redis.call('publish', KEYS[2], ARGV[1]);
    return 1;
end;
return nil; // 这行貌似有点多余

1. 如果锁不存在，或者不是自己的锁，则返回空。
2. 如果锁的重入次数大于1，则重新设置锁的过期时间，返回0。
3. 如果锁的重入次数等于1（不可能小于1），则删除锁，并且发布锁释放事件，返回1。

引出思考

1. 为啥不先使用JVM的锁尝试加锁，加锁成功后再操作Redis，减少网络IO次数。
2. 重入次数感觉没必要存入Redis，直接用ReentrantLock代替或者本地变量代替即可。
