Java程序异常排查

Java程序异常排查的一些基本步骤。

CPU占用过高排查

CPU 占用过高的原因通常有以下几个：

线程中有比较耗时的计算
系统发生了频繁的 Full GC

排查步骤

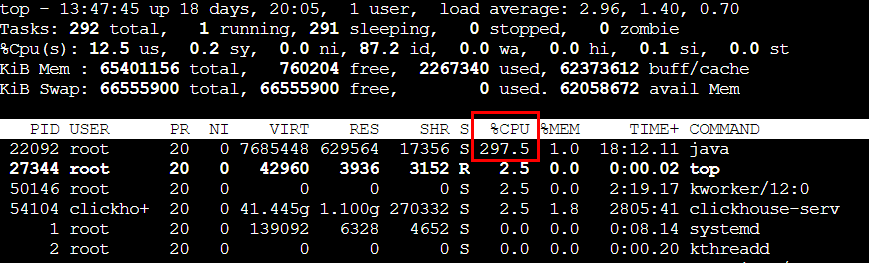

通过 top 命令找到 CPU占用高的 Java 应用程序

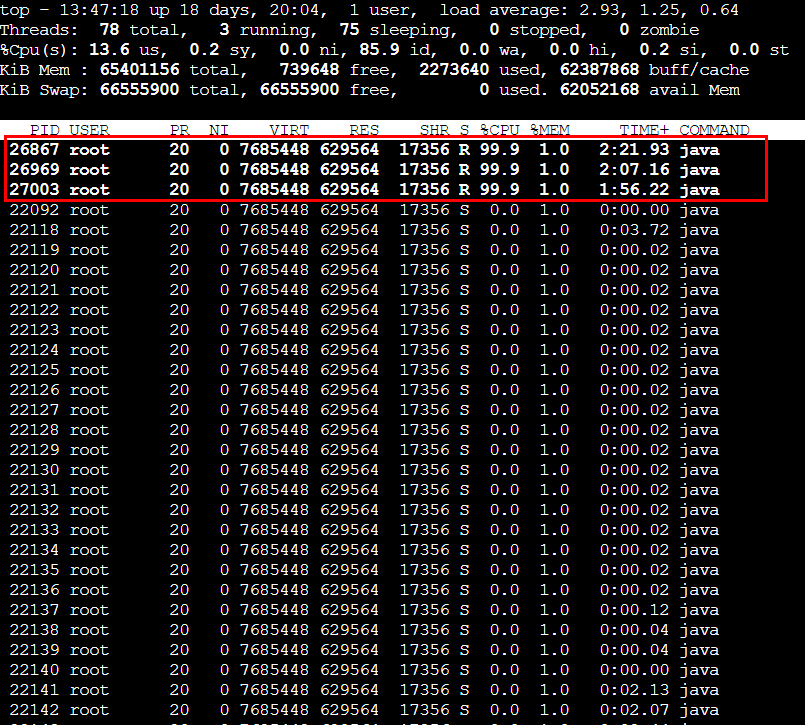

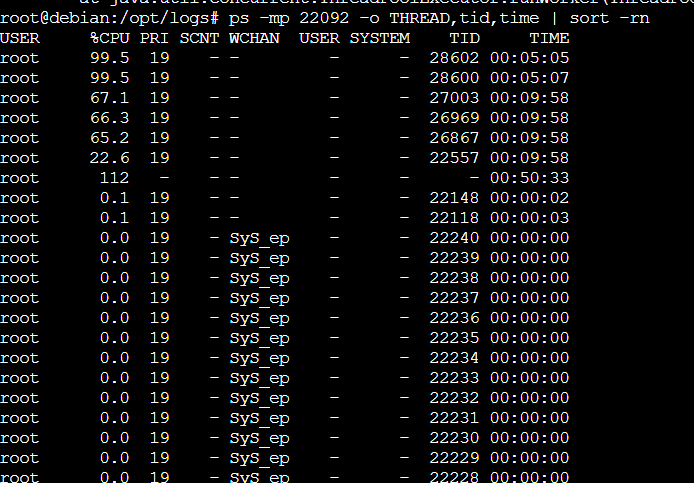

使用 top -H -p PID 查看对应进程的哪个线程占用CPU过高，例如：top -H -p 22092
使用 printf "%x\n" tid 将 CPU 占用高的线程 ID 转换为16进制格式
使用 jstack pid >> thread.txt 导出线程堆栈信息，例如：jstack 22092 >> thread.txt
从线程堆栈信息中查找 CPU 占用高的16进制线程 ID，找到对应的线程栈，分析线程栈信息
1
cat thread.txt | grep -C 20 6fba

快速排查

使用脚本快速排查问题：

wget --no-check-certificate https://raw.github.com/oldratlee/useful-scripts/release-2.x/bin/show-busy-java-threads
chmod +x show-busy-java-threads

bash show-busy-java-threads

脚本内容：

#!/bin/bash
# @Function
# Find out the highest cpu consumed threads of java processes, and print the stack of these threads.
#
# @Usage
#   $ ./show-busy-java-threads
#
# @online-doc https://github.com/oldratlee/useful-scripts/blob/dev-2.x/docs/java.md#-show-busy-java-threads
# @author Jerry Lee (oldratlee at gmail dot com)
# @author superhj1987 (superhj1987 at 126 dot com)
#
# NOTE about Bash Traps and Pitfalls:
#
# 1. DO NOT combine var declaration and assignment which value supplied by subshell!
#    for example: readonly var1=$(echo value1)
#                 local var1=$(echo value1)
#
#    declaration make exit code of assignment to be always 0,
#      aka. the exit code of command in subshell is discarded.
#      tested on bash 3.2.57/4.2.46

# NOTE: DO NOT declare var PROG as readonly, because its value is supplied by subshell.
PROG="$(basename "$0")"
readonly PROG_VERSION='2.5.0-dev'
# choosing between $0 and BASH_SOURCE
# https://stackoverflow.com/a/35006505/922688
# How can I get the source directory of a Bash script from within the script itself?
# https://stackoverflow.com/questions/59895
# Will $0 always include the path to the script?
# https://unix.stackexchange.com/questions/119929
readonly -a COMMAND_LINE=("${BASH_SOURCE[0]}" "$@")
# Get current user name via whoami command
#   See https://www.lifewire.com/current-linux-user-whoami-command-3867579
# Because if run command by `sudo -u`, env var $USER is not rewritten/correct, just inherited from outside!
#
# NOTE: DO NOT declare var USER as readonly, because its value is supplied by subshell.
USER="$(whoami)"

################################################################################
# util functions
################################################################################

# NOTE: $'foo' is the escape sequence syntax of bash
readonly ec=$'\033'      # escape char
readonly eend=$'\033[0m' # escape end
readonly nl=$'\n'        # new line

colorEcho() {
    local color=$1
    shift

    # if stdout is console, turn on color output.
    [ -t 1 ] && echo "${ec}[1;${color}m$*$eend" || echo "$@"
}

colorPrint() {
    local color=$1
    shift

    colorEcho "$color" "$@"
    [[ -n "$append_file" && -w "$append_file" ]] && echo "$@" >>"$append_file"
    [[ -n "$store_dir" && -w "$store_dir" ]] && echo "$@" >>"${store_file_prefix}$PROG"
}

# shellcheck disable=SC2120
normalPrint() {
    echo "$@"
    [[ -n "$append_file" && -w "$append_file" ]] && echo "$@" >>"$append_file"
    [[ -n "$store_dir" && -w "$store_dir" ]] && echo "$@" >>"${store_file_prefix}$PROG"
}

redPrint() {
    colorPrint 31 "$@"
}

greenPrint() {
    colorPrint 32 "$@"
}

yellowPrint() {
    colorPrint 33 "$@"
}

bluePrint() {
    colorPrint 36 "$@"
}

die() {
    redPrint "Error: $*" 1>&2
    exit 1
}

logAndRun() {
    echo "$@"
    echo
    "$@"
}

logAndCat() {
    echo "$@"
    echo
    cat
}

# Bash RegEx to check floating point numbers from user input
# https://stackoverflow.com/questions/13790763
isNonNegativeFloatNumber() {
    [[ "$1" =~ ^[+]?[0-9]+\.?[0-9]*$ ]]
}

isNaturalNumber() {
    [[ "$1" =~ ^[+]?[0-9]+$ ]]
}

isNaturalNumberList() {
    [[ "$1" =~ ^([0-9]+)(,[0-9]+)*$ ]]
}

# print calling(quoted) command line which is able to copy and paste to rerun safely
#
# How to get the complete calling command of a BASH script from inside the script (not just the arguments)
# https://stackoverflow.com/questions/36625593
printCallingCommandLine() {
    local arg isFirst=true
    for arg in "${COMMAND_LINE[@]}"; do
        if $isFirst; then
            isFirst=false
        else
            printf ' '
        fi
        printf '%q' "$arg"
    done
    echo
}

usage() {
    local -r exit_code="${1:-0}"
    (($# > 0)) && shift
    # shellcheck disable=SC2015
    [ "$exit_code" != 0 ] && local -r out=/dev/stderr || local -r out=/dev/stdout

    (($# > 0)) && colorEcho 31 "$*$nl" >$out

    cat >$out <<EOF
Usage: ${PROG} [OPTION]... [delay [count]]
Find out the highest cpu consumed threads of java processes,
and print the stack of these threads.
Example:
  ${PROG}       # show busy java threads info
  ${PROG} 1     # update every 1 second, (stop by eg: CTRL+C)
  ${PROG} 3 10  # update every 3 seconds, update 10 times
Output control:
  -p, --pid <java pid(s)>   find out the highest cpu consumed threads from
                            the specified java process.
                            support pid list(eg: 42,47).
                            default from all java process.
  -c, --count <num>         set the thread count to show, default is 5.
                            set count 0 to show all threads.
  -a, --append-file <file>  specifies the file to append output as log.
  -S, --store-dir <dir>     specifies the directory for storing
                            the intermediate files, and keep files.
                            default store intermediate files at tmp dir,
                            and auto remove after run. use this option to keep
                            files so as to review jstack/top/ps output later.
  delay                     the delay between updates in seconds.
  count                     the number of updates.
                            delay/count arguments imitates the style of
                            vmstat command.
jstack control:
  -s, --jstack-path <path>  specifies the path of jstack command.
  -F, --force               set jstack to force a thread dump.
                            use when jstack does not respond (process is hung).
  -m, --mix-native-frames   set jstack to print both java and
                            native frames (mixed mode).
  -l, --lock-info           set jstack with long listing.
                            prints additional information about locks.
CPU usage calculation control:
  -i, --cpu-sample-interval specifies the delay between cpu samples to get
                            thread cpu usage percentage during this interval.
                            default is 0.5 (second).
                            set interval 0 to get the percentage of time spent
                            running during the *entire lifetime* of a process.
Miscellaneous:
  -h, --help                display this help and exit.
  -V, --version             display version information and exit.
EOF

    exit "$exit_code"
}

progVersion() {
    echo "$PROG $PROG_VERSION"
    exit
}

################################################################################
# Check os support
################################################################################

uname | grep '^Linux' -q || die "$PROG only support Linux, not support $(uname) yet!"

################################################################################
# parse options
################################################################################

# NOTE: ARGS can not be declared as readonly!!
# readonly declaration make exit code of assignment to be always 0, aka. the exit code of `getopt` in subshell is discarded.
#   tested on bash 4.2.46
ARGS=$(
    getopt -n "$PROG" -a -o c:p:a:s:S:i:Pd:FmlhV \
        -l count:,pid:,append-file:,jstack-path:,store-dir:,cpu-sample-interval:,use-ps,top-delay:,force,mix-native-frames,lock-info,help,version \
        -- "$@"
) || {
    echo
    usage 1
}
eval set -- "${ARGS}"

count=5
cpu_sample_interval=0.5

while true; do
    case "$1" in
    -c | --count)
        count="$2"
        shift 2
        ;;
    -p | --pid)
        pid_list="$2"
        shift 2
        ;;
    -a | --append-file)
        append_file="$2"
        shift 2
        ;;
    -s | --jstack-path)
        jstack_path="$2"
        shift 2
        ;;
    -S | --store-dir)
        store_dir="$2"
        shift 2
        ;;
    # support the legacy option name -P,--use-ps for compatibility
    -P | --use-ps)
        cpu_sample_interval=0
        shift
        ;;
    # support the legacy option name -d,--top-delay for compatibility
    -i | --cpu-sample-interval | -d | --top-delay)
        cpu_sample_interval="$2"
        shift 2
        ;;
    -F | --force)
        force=-F
        shift
        ;;
    -m | --mix-native-frames)
        mix_native_frames=-m
        shift
        ;;
    -l | --lock-info)
        more_lock_info=-l
        shift
        ;;
    -h | --help)
        usage
        ;;
    -V | --version)
        progVersion
        ;;
    --)
        shift
        break
        ;;
    esac
done

update_delay=${1:-0}
isNonNegativeFloatNumber "$update_delay" || die "update delay($update_delay) is not a non-negative float number!"

[ -z "$1" ] && update_count=1 || update_count=${2:-0}
isNaturalNumber "$update_count" || die "update count($update_count) is not a natural number!"

if [ -n "$pid_list" ]; then
    pid_list="${pid_list//[[:space:]]/}" # delete white space
    isNaturalNumberList "$pid_list" || die "pid(s)($pid_list) is illegal! example: 42 or 42,99,67"
fi

# check the directory of append-file(-a) mode, create if not exist.
if [ -n "$append_file" ]; then
    if [ -e "$append_file" ]; then
        [ -f "$append_file" ] || die "$append_file(specified by option -a, for storing run output files) exists but is not a file!"
        [ -w "$append_file" ] || die "file $append_file(specified by option -a, for storing run output files) exists but is not writable!"
    else
        append_file_dir="$(dirname "$append_file")"
        if [ -e "$append_file_dir" ]; then
            [ -d "$append_file_dir" ] || die "directory $append_file_dir(specified by option -a, for storing run output files) exists but is not a directory!"
            [ -w "$append_file_dir" ] || die "directory $append_file_dir(specified by option -a, for storing run output files) exists but is not writable!"
        else
            mkdir -p "$append_file_dir" || die "fail to create directory $append_file_dir(specified by option -a, for storing run output files)!"
        fi
    fi
fi

# check store directory(-S) mode, create directory if not exist.
if [ -n "$store_dir" ]; then
    if [ -e "$store_dir" ]; then
        [ -d "$store_dir" ] || die "$store_dir(specified by option -S, for storing output files) exists but is not a directory!"
        [ -w "$store_dir" ] || die "directory $store_dir(specified by option -S, for storing output files) exists but is not writable!"
    else
        mkdir -p "$store_dir" || die "fail to create directory $store_dir(specified by option -S, for storing output files)!"
    fi
fi

isNonNegativeFloatNumber "$cpu_sample_interval" || die "cpu sample interval($cpu_sample_interval) is not a non-negative float number!"

################################################################################
# search/check the existence of jstack command
#
# search order/priority:
#    1. from -s option
#    2. from under env var JAVA_HOME
#    3. from under env var PATH
################################################################################

if [ -n "$jstack_path" ]; then
    # 1. check jstack_path set by -s option
    [ -f "$jstack_path" ] || die "$jstack_path (set by -s option) is NOT found!"
    [ -x "$jstack_path" ] || die "$jstack_path (set by -s option) is NOT executable!"
elif [ -n "$JAVA_HOME" ]; then
    # 2. search jstack under JAVA_HOME
    if [ -f "$JAVA_HOME/bin/jstack" ]; then
        [ -x "$JAVA_HOME/bin/jstack" ] || die "found \$JAVA_HOME/bin/jstack($JAVA_HOME/bin/jstack) is NOT executable!${nl}Use -s option set jstack path manually."
        jstack_path="$JAVA_HOME/bin/jstack"
    elif [ -f "$JAVA_HOME/../bin/jstack" ]; then
        [ -x "$JAVA_HOME/../bin/jstack" ] || die "found \$JAVA_HOME/../bin/jstack($JAVA_HOME/../bin/jstack) is NOT executable!${nl}Use -s option set jstack path manually."
        jstack_path="$JAVA_HOME/../bin/jstack"
    fi
elif command -v jstack &>/dev/null; then
    # 3. search jstack under PATH
    jstack_path="$(command -v jstack)"
    [ -x "$jstack_path" ] || die "found $jstack_path from PATH is NOT executable!${nl}Use -s option set jstack path manually."
else
    die "jstack NOT found by JAVA_HOME(${JAVA_HOME:-not set}) setting and PATH!${nl}Use -s option set jstack path manually."
fi

################################################################################
# biz logic
################################################################################

# NOTE: DO NOT declare var run_timestamp as readonly, because its value is supplied by subshell.
run_timestamp="$(date "+%Y-%m-%d_%H:%M:%S.%N")"
readonly uuid="${PROG}_${run_timestamp}_${$}_${RANDOM}"

readonly tmp_store_dir="/tmp/${uuid}"
if [ -n "$store_dir" ]; then
    readonly store_file_prefix="$store_dir/${run_timestamp}_"
else
    readonly store_file_prefix="$tmp_store_dir/${run_timestamp}_"
fi
mkdir -p "$tmp_store_dir"

cleanupWhenExit() {
    rm -rf "$tmp_store_dir" &>/dev/null
}
trap cleanupWhenExit EXIT

headInfo() {
    colorEcho "0;34;42" ================================================================================
    echo "$(date "+%Y-%m-%d %H:%M:%S.%N") [$((update_round_num + 1))/$update_count]: $(printCallingCommandLine)"
    colorEcho "0;34;42" ================================================================================
    echo
}

if [ -n "${pid_list}" ]; then
    readonly ps_process_select_options="-p $pid_list"
else
    readonly ps_process_select_options="-C java -C jsvc"
fi

__die_when_no_java_process_found() {
    if [ -n "${pid_list}" ]; then
        die "process($pid_list) is not running, or not java process!"
    else
        die 'No java process found!'
    fi
}

# output field: pid, thread id(lwp), pcpu, user
#   order by pcpu(percentage of cpu usage)
#
# NOTE:
# use ps command to find busy thread(cpu usage)
# cpu usage of ps command is expressed as
# the percentage of time spent running during the *entire lifetime* of a process,
# this is not ideal in general.
findBusyJavaThreadsByPs() {
    # 1. sort by %cpu by ps option `--sort -pcpu`
    #    unfortunately, ps from `procps-ng 3.3.12`, `--sort` does not work properly with other options,
    #    use
    #       ps <other options>
    #    combined
    #       sort -k3,3nr
    #    instead of
    #       ps <other options> --sort -pcpu
    # 2. use wide output(unlimited width) by ps option `-ww`
    #    avoid trunk user column to username_fo+ or $uid alike

    # shellcheck disable=SC2206
    local -a ps_cmd_line=(ps $ps_process_select_options -wwLo 'pid,lwp,pcpu,user' --no-headers)
    # DO NOT combine var ps_out declaration and assignment, because its value is supplied by subshell.
    local ps_out
    ps_out="$("${ps_cmd_line[@]}" | sort -k3,3nr)"
    [ -n "$ps_out" ] || __die_when_no_java_process_found

    if [ -n "$store_dir" ]; then
        echo "$ps_out" | logAndCat "${ps_cmd_line[*]} | sort -k3,3nr" >"${store_file_prefix}$((update_round_num + 1))_ps"
    fi

    if ((count > 0)); then
        echo "$ps_out" | head -n "${count}"
    else
        echo "$ps_out"
    fi
}

# top with output field: thread id, %cpu
__top_threadId_cpu() {
    # DO NOT combine var java_pid_list declaration and assignment, because its value is supplied by subshell.
    local java_pid_list
    # shellcheck disable=SC2086
    java_pid_list="$(ps $ps_process_select_options -o pid --no-headers)"
    [ -n "$java_pid_list" ] || __die_when_no_java_process_found
    # shellcheck disable=SC2086
    java_pid_list="$(echo $java_pid_list | tr ' ' ,)" # join with ,

    # 1. sort by %cpu by top option `-o %CPU`
    #    unfortunately, top version 3.2 does not support -o option(supports from top version 3.3+),
    #    use
    #       HOME="$tmp_store_dir" top -H -b -n 1
    #    combined
    #       sort
    #    instead of
    #       HOME="$tmp_store_dir" top -H -b -n 1 -o '%CPU'
    # 2. change HOME env var when run top,
    #    so as to prevent top command output format being change by .toprc user config file unexpectedly
    # 3. use option `-d 0.5`(update interval 0.5 second) and `-n 2`(update 2 times),
    #    and use second time update data to get cpu percentage of thread in 0.5 second interval
    # 4. top v3.3, there is 1 black line between 2 update;
    #    but top v3.2, there is 2 blank lines between 2 update!
    local -a top_cmd_line=(top -H -b -d "$cpu_sample_interval" -n 2 -p "$java_pid_list")
    # DO NOT combine var ps_out declaration and assignment, because its value is supplied by subshell.
    local top_out
    top_out=$(HOME="$tmp_store_dir" "${top_cmd_line[@]}")
    if [ -n "$store_dir" ]; then
        echo "$top_out" | logAndCat "${top_cmd_line[@]}" >"${store_file_prefix}$((update_round_num + 1))_top"
    fi

    # DO NOT combine var result_threads_top_info declaration and assignment, because its value is supplied by subshell.
    local result_threads_top_info
    result_threads_top_info=$(
        echo "$top_out" | awk '{
            # from text line to empty line, increase block index
            if (previousLine && !$0) blockIndex++
            # only print 4th text block(blockIndex == 3), aka. process info of second top update
            if (blockIndex == 3 && $1 ~ /^[0-9]+$/)
                print $1, $9  # $1 is thread id field, $9 is %cpu field
            previousLine = $0
        }'
    )
    [ -n "$result_threads_top_info" ] || __die_when_no_java_process_found

    echo "$result_threads_top_info" | sort -k2,2nr
}

__complete_pid_user_by_ps() {
    # ps output field: pid, thread id(lwp), user
    # shellcheck disable=SC2206
    local -a ps_cmd_line=(ps $ps_process_select_options -wwLo 'pid,lwp,user' --no-headers)
    # DO NOT combine var ps_out declaration and assignment, because its value is supplied by subshell.
    local ps_out
    ps_out="$("${ps_cmd_line[@]}")"
    if [ -n "$store_dir" ]; then
        echo "$ps_out" | logAndCat "${ps_cmd_line[@]}" >"${store_file_prefix}$((update_round_num + 1))_ps"
    fi

    local idx=0 threadId pcpu output_fields
    while read -r threadId pcpu; do
        ((count <= 0 || idx < count)) || break

        # output field: pid, threadId, pcpu, user
        output_fields="$(echo "$ps_out" |
            awk -v "threadId=$threadId" -v "pcpu=$pcpu" '$2==threadId {
                print $1, threadId, pcpu, $3; exit
            }')"
        if [ -n "$output_fields" ]; then
            ((idx++))
            echo "$output_fields"
        fi
    done
}

# output format is same as function findBusyJavaThreadsByPs
findBusyJavaThreadsByTop() {
    __top_threadId_cpu | __complete_pid_user_by_ps
}

printStackOfThreads() {
    local idx=0 pid threadId pcpu user threadId0x
    while read -r pid threadId pcpu user; do
        threadId0x="0x$(printf %x "${threadId}")"

        ((idx++))
        local jstackFile="${store_file_prefix}$((update_round_num + 1))_jstack_${pid}"
        [ -f "${jstackFile}" ] || {
            # shellcheck disable=SC2206
            local -a jstack_cmd_line=("$jstack_path" ${force} $mix_native_frames $more_lock_info ${pid})
            if [ "${user}" == "${USER}" ]; then
                # run without sudo, when java process user is current user
                logAndRun "${jstack_cmd_line[@]}" >"${jstackFile}"
            elif [ $UID == 0 ]; then
                # if java process user is not current user, must run jstack with sudo
                logAndRun sudo -u "${user}" "${jstack_cmd_line[@]}" >"${jstackFile}"
            else
                # current user is not root user, so can not run with sudo; print error message and rerun suggestion
                redPrint "[$idx] Fail to jstack busy(${pcpu}%) thread(${threadId}/${threadId0x}) stack of java process(${pid}) under user(${user})."
                redPrint "User of java process($user) is not current user($USER), need sudo to rerun:"
                yellowPrint "    sudo $(printCallingCommandLine)"
                normalPrint
                continue
            fi || {
                redPrint "[$idx] Fail to jstack busy(${pcpu}%) thread(${threadId}/${threadId0x}) stack of java process(${pid}) under user(${user})."
                normalPrint
                rm "${jstackFile}" &>/dev/null
                continue
            }
        }

        bluePrint "[$idx] Busy(${pcpu}%) thread(${threadId}/${threadId0x}) stack of java process(${pid}) under user(${user}):"

        if [ -n "$mix_native_frames" ]; then
            local sed_script="/--------------- $threadId ---------------/,/^---------------/ {
                /--------------- $threadId ---------------/b # skip first separator line
                /^---------------/d # delete second separator line
                p
            }"
        elif [ -n "$force" ]; then
            local sed_script="/^Thread ${threadId}:/,/^$/ {
                /^$/d; p # delete end separator line
            }"
        else
            local sed_script="/ nid=${threadId0x} /,/^$/ {
                /^$/d; p # delete end separator line
            }"
        fi
        {
            sed "$sed_script" -n "${jstackFile}"
            echo
        } | tee ${append_file:+-a "$append_file"} ${store_dir:+-a "${store_file_prefix}$PROG"}
    done
}

################################################################################
# Main
################################################################################

main() {
    local update_round_num
    # if update_count <= 0, infinite loop till user interrupted (eg: CTRL+C)
    for ((update_round_num = 0; update_count <= 0 || update_round_num < update_count; ++update_round_num)); do
        ((update_round_num > 0)) && sleep "$update_delay"

        [[ -n "$append_file" || -n "$store_dir" ]] && headInfo |
            tee ${append_file:+-a "$append_file"} ${store_dir:+-a "${store_file_prefix}$PROG"} >/dev/null
        ((update_count != 1)) && headInfo

        if [ "$cpu_sample_interval" == 0 ]; then
            findBusyJavaThreadsByPs
        else
            findBusyJavaThreadsByTop
        fi | printStackOfThreads
    done
}

main

其他

使用 ps -mp pid -o THREAD,tid,time | sort -rn 可以查看占用CPU高的线程

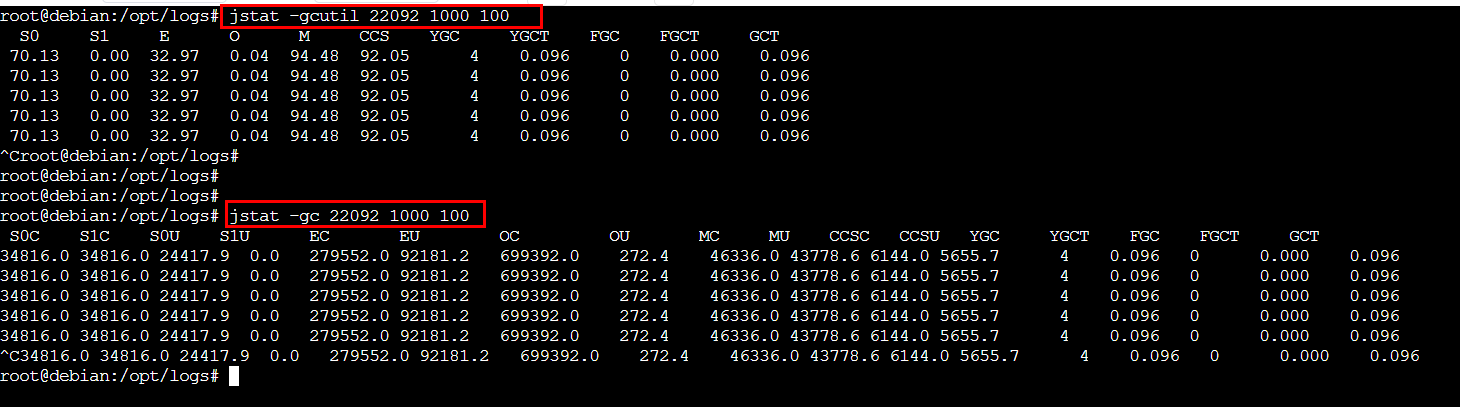

使用 jstat -gcutil pid 或 jstat -gc pid 可以查看 GC 信息

内存溢出排查

JVM 发生 OOM 时自动生成 hprof 文件 -> 增加启动参数：-XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=./logs

-XX:+HeapDumpOnOutOfMemoryError：表示当JVM发生OOM时，自动生成 hprof 文件。
-XX:HeapDumpPath=${目录}：表示生成DUMP文件的路径，也可以指定文件名称。

如下：

1	java -XX:MetaspaceSize=512m -XX:MaxMetaspaceSize=512m -Xms2g -Xmx2g -Xss256k -XX:SurvivorRatio=8 -XX:NewRatio=2 -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=./logs -jar app.jar

生成 hprof 文件

1	jmap -dump:format=b,file=202109281524.hprof 38426

生成 dump 文件

1	jmap -dump:format=b,file=202109281524.dump 38426

分析 java_pidxxx.hprof 文件

这里使用 Jprofile 分析 hprof 文件

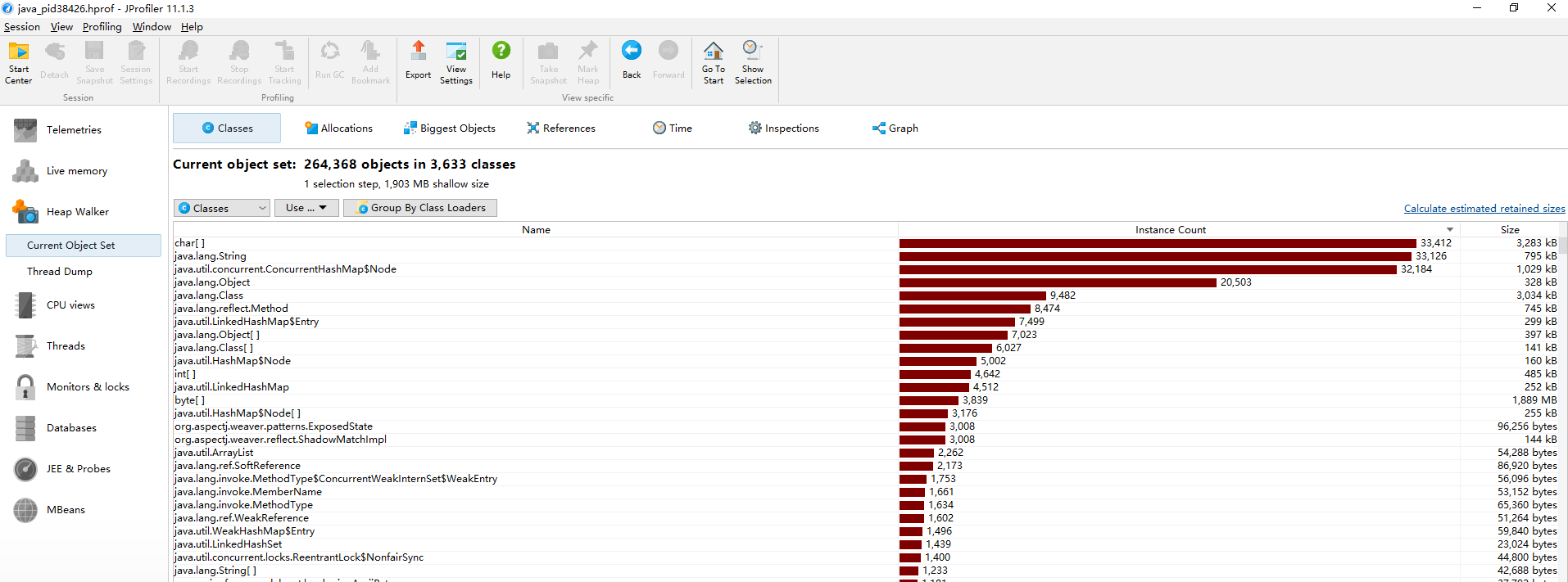

使用 jprofile 打开 java_pidxxx.hprof 文件，如下：

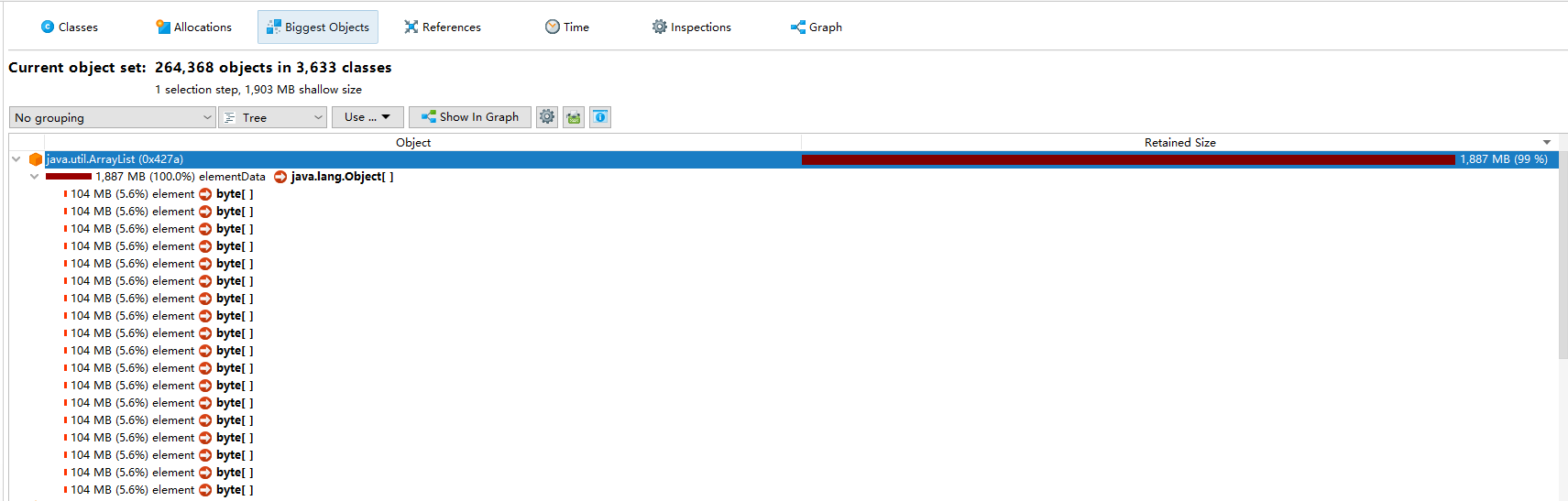

选择 Biggest Objects，查找大对象信息

其他

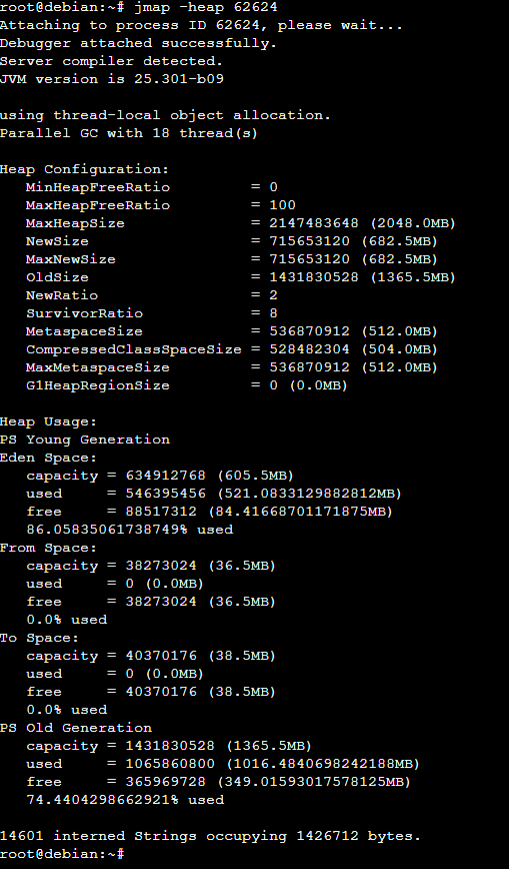

使用 jmap -heap pid 打印 JVM 的内存状态

GC日志分析

在 Java 程序启动脚本中加入：

1	-XX:+PrintGCDetails -XX:+PrintGCDateStamps -Xloggc:/logs/gc.log

选项：

-XX:+PrintGC：输出GC日志
-XX:+PrintGCDetails：输出GC的详细日志
-XX:+PrintGCTimeStamps：输出GC的时间戳（以基准时间的形式）
-XX:+PrintGCDateStamps：输出GC的时间戳（以日期的形式，如 2013-05-04T21:53:59.234+0800）
-XX:+PrintHeapAtGC：在进行GC的前后打印出堆的信息
-Xloggc:../logs/gc.log：GC日志文件的输出路径

远程监控 Java 程序

在需监控的远程 Java 程序启动脚本中加入：

-Dcom.sun.management.jmxremote=true -Djava.rmi.server.hostname=10.86.52.68 -Dcom.sun.management.jmxremote.port=28080 -Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.authenticate=false

选项：

-Dcom.sun.management.jmxremote=true：表示开启JVM远程监控
-Djava.rmi.server.hostname=10.86.52.68：设置监控的 IP
-Dcom.sun.management.jmxremote.port=28080：设置监听的端口
-Dcom.sun.management.jmxremote.ssl=false：设置是否启用 SSL
-Dcom.sun.management.jmxremote.authenticate=false：设置是否需要用户密码验证

使用 jconsole 远程连接

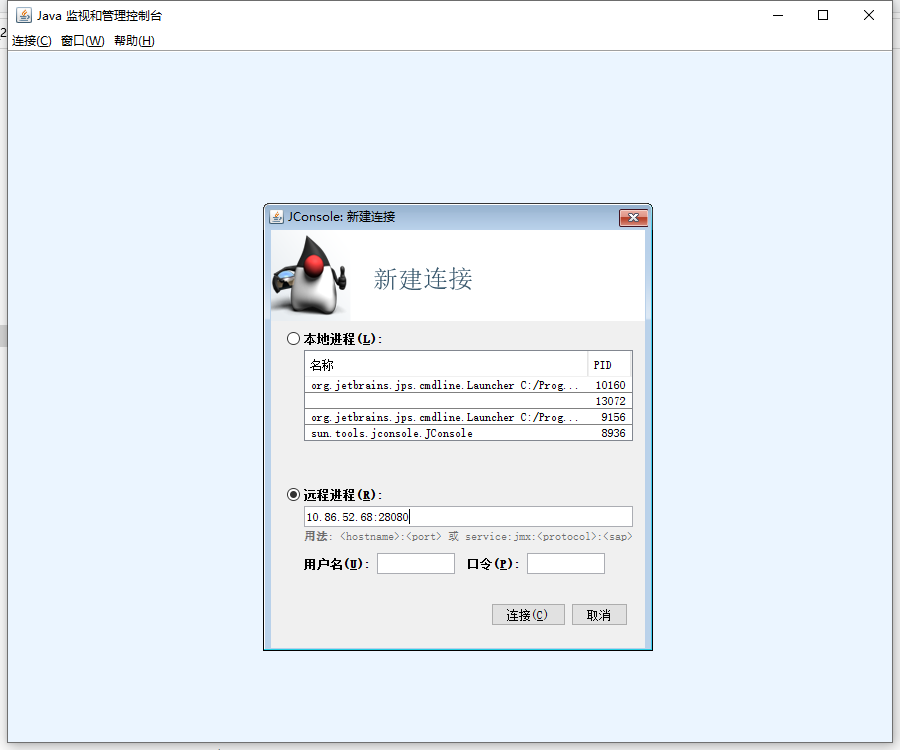

在 JDK 安装路径下的 bin 目录中可以找到 jconsole.exe，打开填入相关信息。
选择不安全链接

使用 jvisualvm 远程连接

jvisualvm 作为 jconsole 的升级版，提供了更多信息。使用如下：

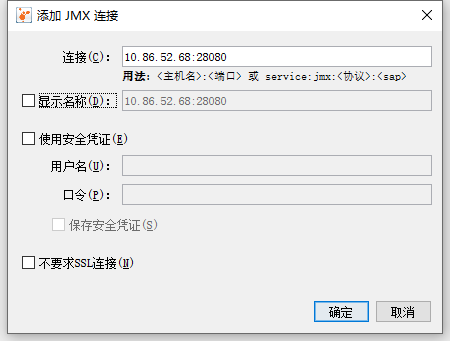

在 JDK 安装路径下的 bin 目录中可以找到 jvisualvm，打开选择文件，添加 JMX 连接，填入相关信息。

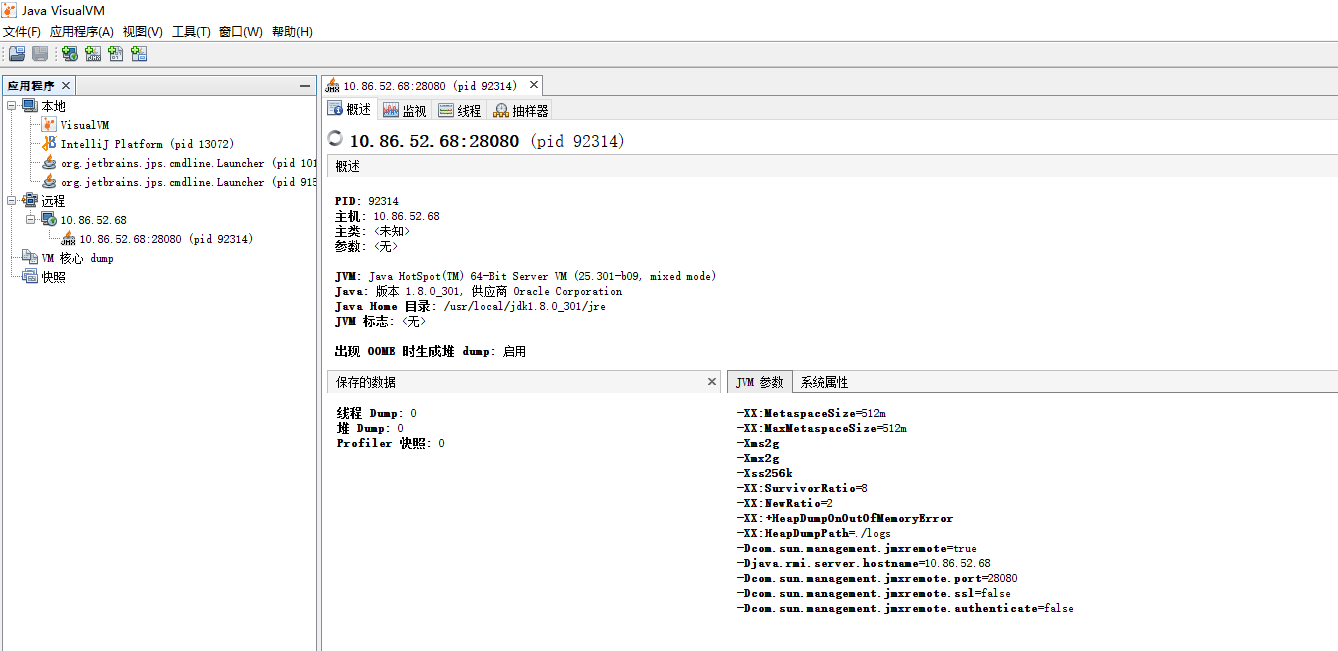

连接成功如下

jprofiler 远程监控 Java 程序

注意：Windows 和 Linux的都必须安装 jprofiler，并且版本必须一致。

jprofiler 官方文档

基本步骤如下：

Windows 上安装 jprofiler，这一步省略

Linux 上安装 jprofiler 如下：

1 2	cd /opt && wget https://download-gcdn.ej-technologies.com/jprofiler/jprofiler_linux_11_1_4.tar.gz tar -zxvf jprofiler_linux_11_1_4.tar.gz

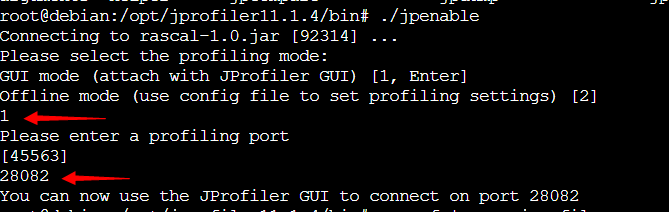

执行 jpenable：cd /opt/jprofiler11.1.4/ && bin/jpenable。先输入 1，再输入监听的端口号 28082。

Java 程序启动命令后添加相关配置（注意：需要在 -jar 之后添加）

1	-agentlib:jprofilerti=port=28082 -Xbootclasspath/a:/opt/jprofiler11.1.4/bin/agent.jar

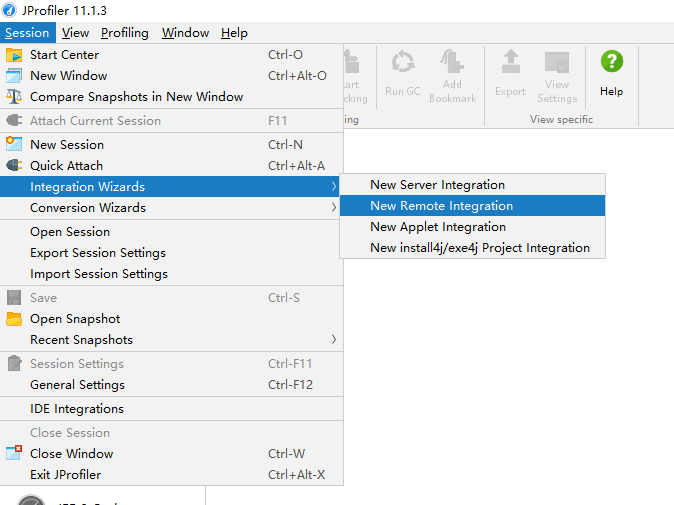

在 Windows 打开 jprofiler，选择 Session -> Integration Wizards -> New remote Integration。

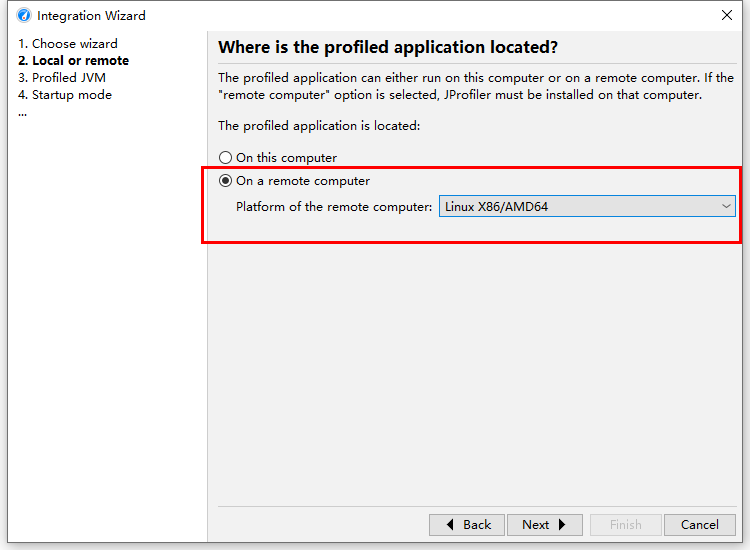

选择远程连接，修改相关选项
设置 JVM 版本

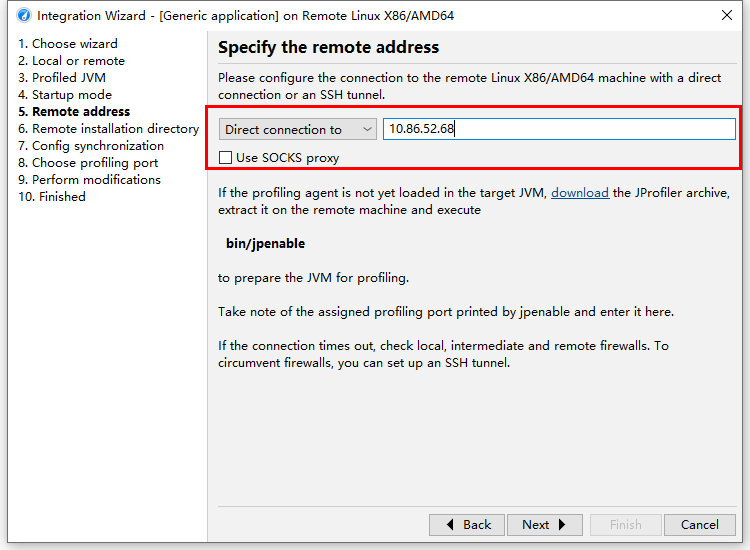

选择直接连接，并填入服务器 IP，注意不用填端口
设置 Linux 上 jprofiler 的安装目录

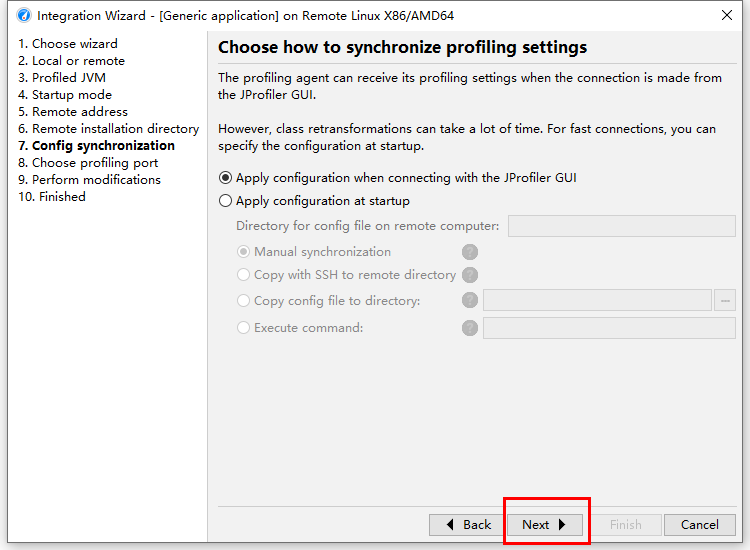

直接下一步

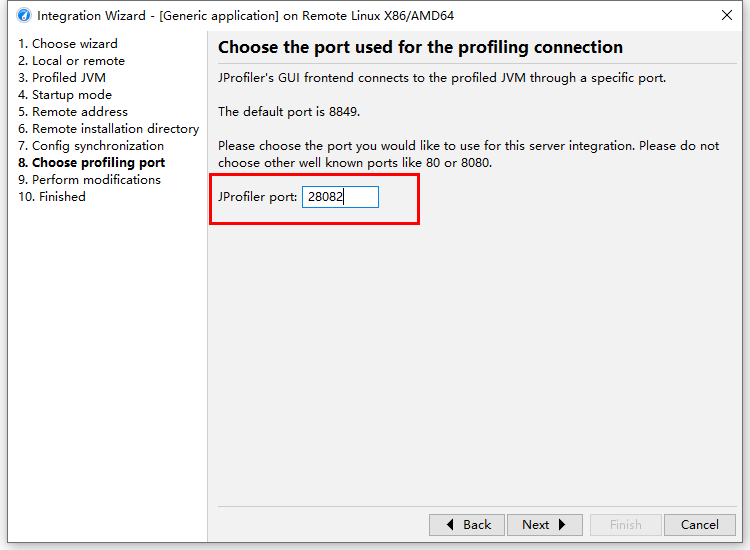

输入端口

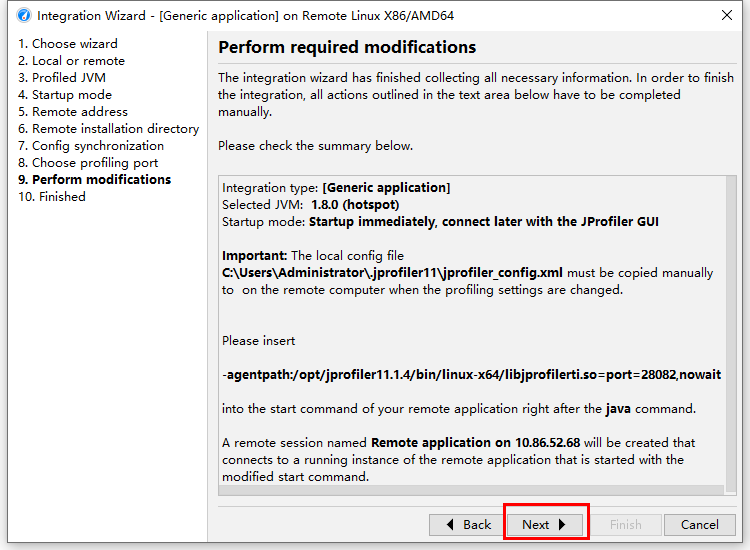

直接下一步

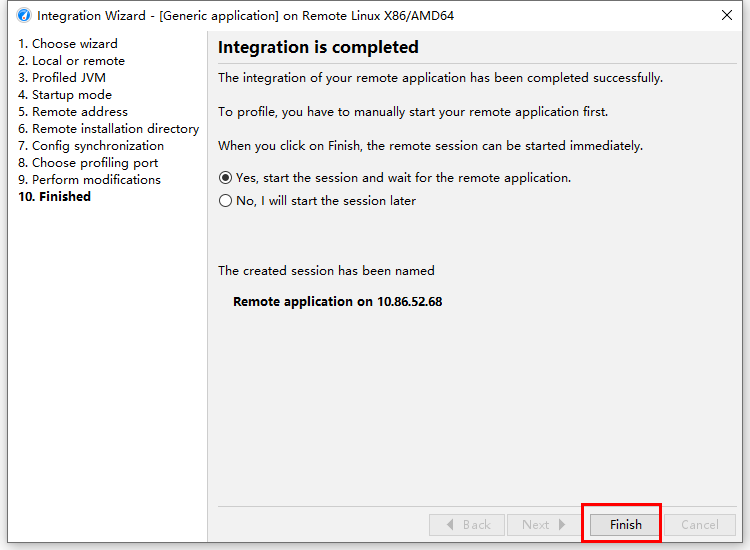

完成配置

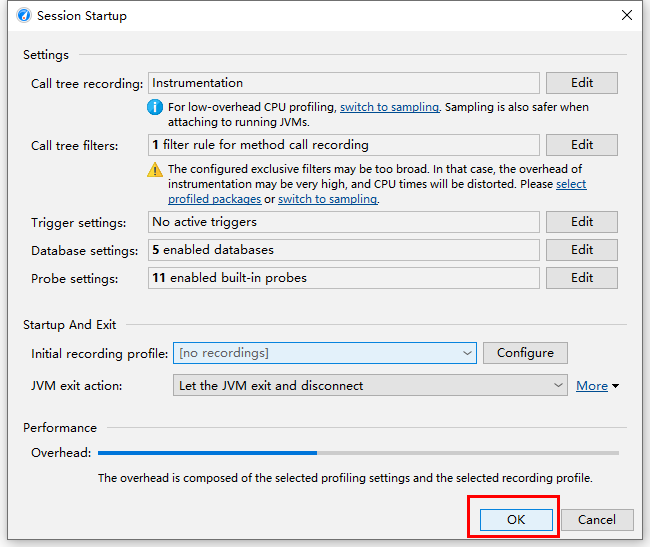

选择 ok

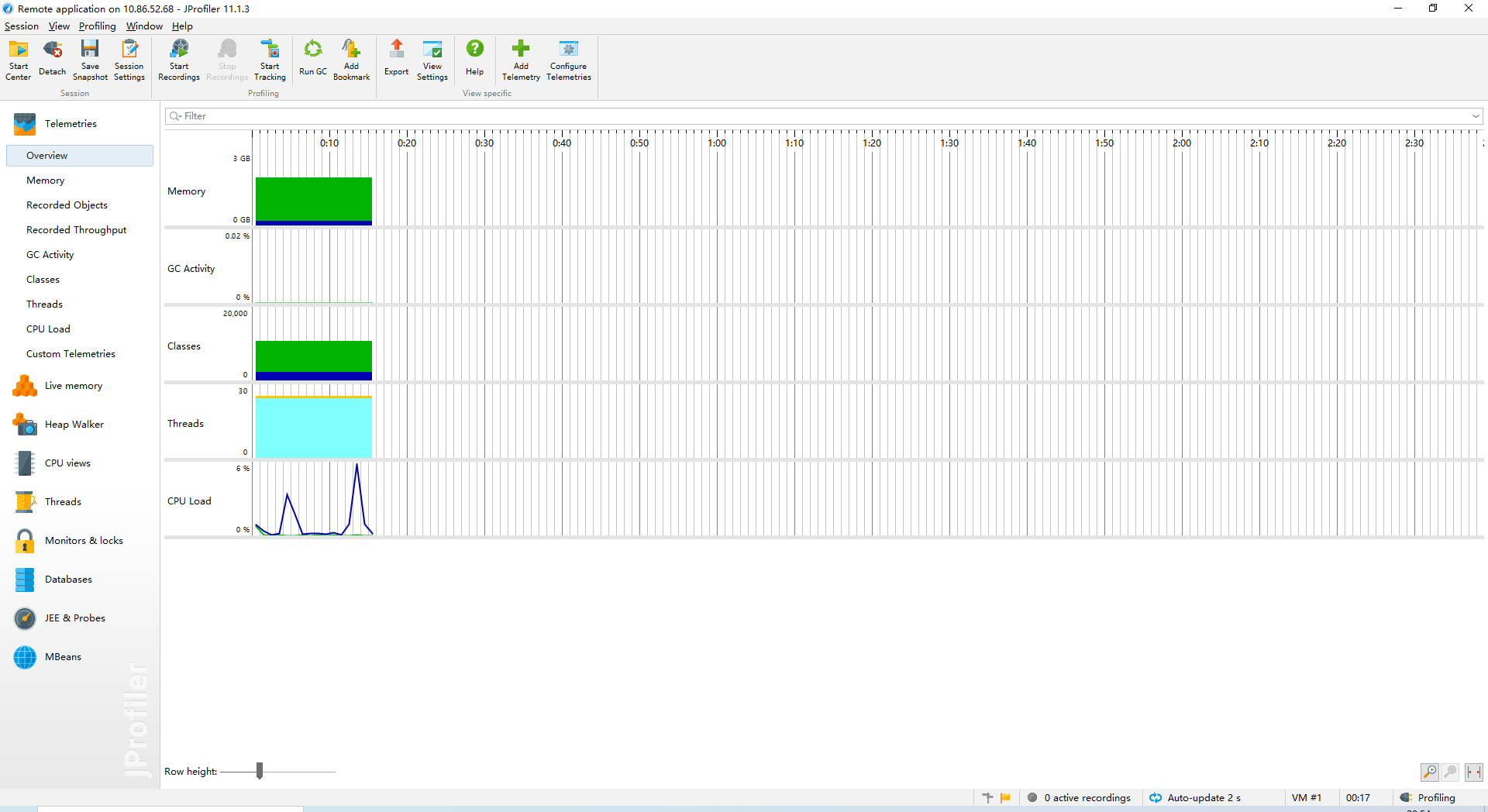

完成后效果如下
